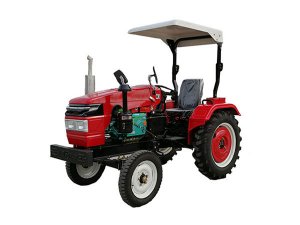

Belt Tractor with Sunshade, Belt Drive Tractor with Canopy
Go back to Catalog: 20HP-50HP Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
Belt Tractor with Sunshade Series
Belt Tractor with Sunshade | Belt Drive Tractor with Canopy.
The assembly technical parameters
2. Theoretical speed （km/h）
a.(8+2 shift)
b.(6+1 shift)
3. Engines

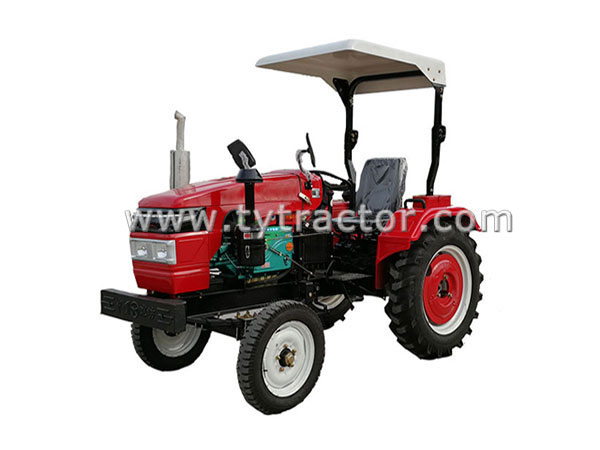

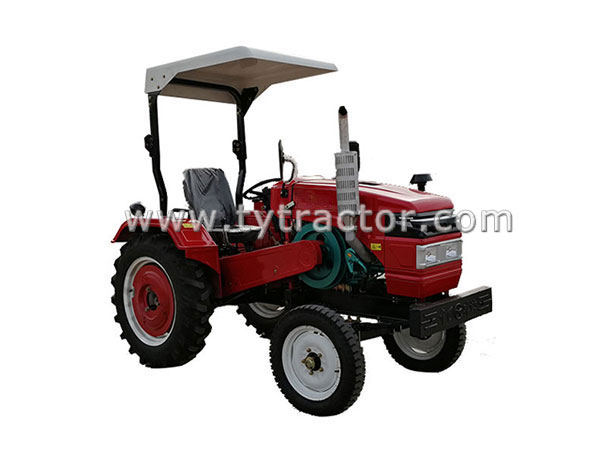

Belt Tractor with Sunshade is a practical and economical agricultural solution designed for small and medium-scale farming operations. Featuring a reliable belt drive transmission system and a durable canopy, this tractor delivers stable performance, easy maintenance, and enhanced operator comfort under various working conditions.
The belt drive system offers a simple and efficient power transmission structure, reducing mechanical complexity and maintenance costs. Compared with gear-intensive drive systems, belt drive tractors provide smoother operation, lower vibration, and easier servicing, making them especially suitable for rural areas and developing agricultural markets.
Equipped with a fuel-efficient diesel engine, this belt drive tractor ensures stable power output for daily farm tasks such as plowing, harrowing, planting, irrigation, and light transportation. The optimized engine performance helps reduce fuel consumption while maintaining sufficient torque for common agricultural applications.
The integrated sunshade canopy provides effective protection against strong sunlight and heat, allowing operators to work comfortably during long hours in open fields. The canopy structure is sturdy and weather-resistant, improving working efficiency and reducing operator fatigue in hot climates.
This belt tractor supports a variety of agricultural implements, including plows, rotary tillers, harrows, trailers, and sprayers. The standard PTO system delivers consistent power to attachments, enabling multi-functional use throughout different farming seasons. Its compact structure and good maneuverability make it suitable for orchards, vegetable farms, dry fields, and flat farmland.
Designed with durability in mind, the tractor features a reinforced chassis, strong axle structure, and wear-resistant components to ensure long service life. The simple mechanical layout allows for easy operation and maintenance, even for users with limited technical experience.
As a professional tractor manufacturer and exporter, we provide factory-direct supply, competitive pricing, and stable production capacity. OEM and ODM customization options are available, including color, branding, canopy style, and technical specifications to meet different market requirements.
Belt Tractor with Sunshade / Belt Drive Tractor with Canopy is an ideal choice for farmers, agricultural distributors, and importers seeking a reliable, low-cost, and easy-to-maintain tractor for global agricultural markets.
Belt Tractor with Sunshade | Belt Drive Tractor with Canopy.
The assembly technical parameters
|
Model |
150 | 170 | 180 | 200 | 220 | |
|---|---|---|---|---|---|---|
| Drive type | 4×2WD | |||||
|
Rated traction |
3350 | 3626 | 3724 | 3822 | 3950 | |
|
Dimensions （mm） |
L | 2670/2730 |
2670/2730/2810 |
2670/2730/2810 | 2775/2825/2895 | 2775/2825/2895 |
| W | 1160 | 1160 | 1160/1420/1520 | 1160/1420/1520 | 1160/1420/1520 | |
| H | 1680/1712 | 1680/1712/1724 | 1712/1724//1763/1776 | |||
|
Wheel base （mm） |
F | 900 | 900/960 | 900/960 | 900/1140/1240 | |
| R | 960 | 900/960 | 900/960 | 960/1200/1300 | ||
|
Track base (mm) |
1382 | 1382/1540 | ||||
|
Ground clearance (mm) |
245／295 | 245/295/340 | 295/340 | |||
| Steering radius(m) | 2.8／3.0（for wide track）±0.2 |
|
||||
| Structure weight(Kg) | 750/ | 750~875 | 920~1100 | |||
| Model | 244 | 264 | 284 | 304 | |
|---|---|---|---|---|---|
| Drive type | 4×2WD | ||||
| Rated traction (N) | 4050 | 4165 | 4250 | 4350 | |
|
Dimesions (mm) |
L | 2830/2890/2950 | |||
| W | 1160/1420/1520 | ||||
| H | 1732/1745/1783/1795 | ||||
| Wheel base (mm) | F | 900/1140/1240 | |||
| R | 960/1200/1300 | ||||
| Track base (mm) | 1382/1540 | ||||
| Ground clearance (mm) | 295/340 | ||||
| Steering radius (m) | 2.8／3.0（wide track）±0.2 | ||||
| Structure weight(Kg) | 920~1200 | ||||
2. Theoretical speed （km/h）
a.(8+2 shift)
| Tyre specifications | 7.5-20 | 8.3-24 | 9.5-20 | 9.5-24 | |||||||||
| L SpeedⅠ | 2.80 | 3.05 | 2.87 | 3.15 | |||||||||
|
L Speed Ⅱ |
4.60 | 5.04 | 4.74 | 5.21 | |||||||||
| L Speed Ⅲ | 6.58 | 7.20 | 6.74 | 7.42 | |||||||||
| L Speed Ⅳ | 10.28 | 11.24 | 10.67 | 11.73 | |||||||||
| H Speed Ⅰ | 7.86 | 8.59 | 8.00 | 8.80 | |||||||||
| H Speed Ⅱ | 12.91 | 14.11 | 13.25 | 14.57 | |||||||||
| H Speed Ⅲ | 18.45 | 20.17 | 19.21 | 21.12 | |||||||||
| H Speed Ⅳ | 28.82 | 31.51 | 29.55 | 32.49 | |||||||||
| Reverse Ⅰ | 3.71 | 4.06 | 3.8 | 4.18 | |||||||||
| Reverse Ⅱ | 10.40 | 11.37 | 10.67 | 11.73 | |||||||||
b.(6+1 shift)
| Tyre | 7.5-16 | 7.5-20 | 8.3-24 | 9.5-20 | 9.5-24 |
| Speed I | 2.20 | 2.48 | 2.71 | 2.54 | 2.80 |
| Speed II | 5.14 | 5.77 | 6.31 | 5.91 | 6.50 |
| Speed III | 6.92 | 7.77 | 8.49 | 8.00 | 8.80 |
| Speed IV | 8.11 | 9.11 | 9.96 | 9.37 | 10.30 |
| Speed V | 16.12 | 18.11 | 19.8 | 18.29 | 20.11 |
| Speed VI | 26.65 | 28.82 | 31.51 | 29.55 | 32.49 |
| Reverse I | 5.30 | 5.95 | 6.50 | 6.10 | 6.70 |
3. Engines
| Ref. | Model |
Rated power KW |
Retaed speed r/min |
Type |
Fuel consumption （g/rw.h） |
| 154 | LD1100 | 11 | 2200 | Single-cylinder, horizontal, four-stroke, direct injection | ≤262.5 |
| ZS1100 | 11 | ≤238 | |||
| S1100 | 11.03 | ≤246.2 | |||
| 174 | LD1105 | 12.1 | ≤238 | ||
| ZS1105 | 12.1 | ≤238 | |||
| ZH1105 | 13.13 | ≤247.5 | |||
| SD1105 | 12.1 | ≤250.2 | |||
| 184 | LD1110 | 13.2 | ≤242 | ||
| ZS1110 | 13.2 | ≤238 | |||
| ZH1110 | 13.24 | ≤244.8 | |||
| SD1110 | 13.2 |
≤250.2 |
|||
|
204 |
LD1115 | 14.7 | ≤242 | ||
| ZS1115 | 14.7 | ≤238 | |||
| ZH1115 | 14.71 | ≤242.1 | |||
| LC1115 | 14.7 | ≤250.2 | |||
| TC1115 | 14.7 | ≤250.2 | |||
|
224 |
KM130 | 16.2 | ≤242 | ||
| LD24 | 15.44 | ≤242 | |||
| JD118 | 15.44 | ≤242.1 | |||
| LC130 | 16.2 | ≤250.2 | |||
| JL128 | 16.2 | ≤250.2 | |||
|
244 |
KM138 | 17.6 | ≤242 | ||
| LC138 | 17.6 | ≤250.2 | |||
| LC24 | 17 | ≤250.2 | |||
|
264 |
LD28 | 18.38 | ≤252 | ||
| KM160 | 19.12 | ≤242 | |||
| LC26 | 18.38 | ≤250.2 | |||
| LC28 | 19.12 | ≤250.2 | |||
| ZH1125E | 18.38 | ≤240.7 | |||
| 284 | LC30 | 20.58 | ≤250.2 | ||
| 304 | KM173 |
22.06 |
≤242 |
Belt Tractor with Sunshade is a practical and economical agricultural solution designed for small and medium-scale farming operations. Featuring a reliable belt drive transmission system and a durable canopy, this tractor delivers stable performance, easy maintenance, and enhanced operator comfort under various working conditions.
The belt drive system offers a simple and efficient power transmission structure, reducing mechanical complexity and maintenance costs. Compared with gear-intensive drive systems, belt drive tractors provide smoother operation, lower vibration, and easier servicing, making them especially suitable for rural areas and developing agricultural markets.
Equipped with a fuel-efficient diesel engine, this belt drive tractor ensures stable power output for daily farm tasks such as plowing, harrowing, planting, irrigation, and light transportation. The optimized engine performance helps reduce fuel consumption while maintaining sufficient torque for common agricultural applications.
The integrated sunshade canopy provides effective protection against strong sunlight and heat, allowing operators to work comfortably during long hours in open fields. The canopy structure is sturdy and weather-resistant, improving working efficiency and reducing operator fatigue in hot climates.
This belt tractor supports a variety of agricultural implements, including plows, rotary tillers, harrows, trailers, and sprayers. The standard PTO system delivers consistent power to attachments, enabling multi-functional use throughout different farming seasons. Its compact structure and good maneuverability make it suitable for orchards, vegetable farms, dry fields, and flat farmland.
Designed with durability in mind, the tractor features a reinforced chassis, strong axle structure, and wear-resistant components to ensure long service life. The simple mechanical layout allows for easy operation and maintenance, even for users with limited technical experience.
As a professional tractor manufacturer and exporter, we provide factory-direct supply, competitive pricing, and stable production capacity. OEM and ODM customization options are available, including color, branding, canopy style, and technical specifications to meet different market requirements.
Belt Tractor with Sunshade / Belt Drive Tractor with Canopy is an ideal choice for farmers, agricultural distributors, and importers seeking a reliable, low-cost, and easy-to-maintain tractor for global agricultural markets.
