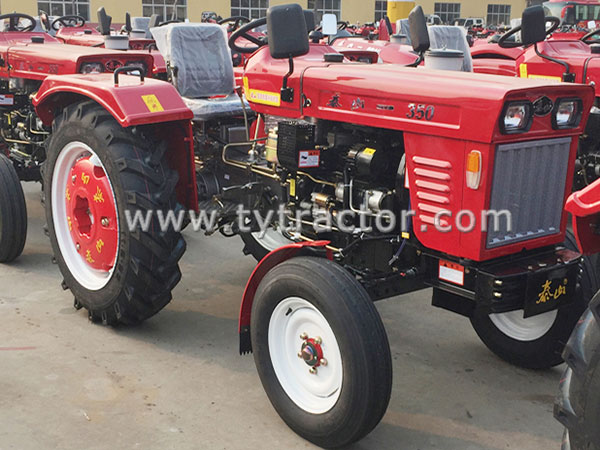

TS350 Tractor, TAISHAN TS350 2WD 35HP TRACTOR
Go back to Catalog: TS Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
TS350 Tractor Series
This tractor, which is the directly link engine type ,hans good performance in medium horsepower range. Tractor equipped with jaw differential lock , which improves tractor through ability . The set of the hydraulic output valve can be directly connecting to the tipping trailer . According to the requirements of different users ,tractor can have a variety of configurations .User can choose single acting or double action clutch ,air brake ,grassland tire ,paddy field tire ; Power output can coose single speed or double speed .Wheel track can be fixed or adjustable .
This tractor, which is the directly link engine type ,hans good performance in medium horsepower range. Tractor equipped with jaw differential lock , which improves tractor through ability . The set of the hydraulic output valve can be directly connecting to the tipping trailer . According to the requirements of different users ,tractor can have a variety of configurations .User can choose single acting or double action clutch ,air brake ,grassland tire ,paddy field tire ; Power output can coose single speed or double speed .Wheel track can be fixed or adjustable .
| Model | 350(TS) | ||
| Type | 4*2 | ||
| Dimensions of Tractor | Lenght mm | 3000 | |
| widht mm | 1460 | ||
| Height mm | 1510 | ||
| Tread | Front mm | 1200 | |
| Rear mm | 1200 | ||
| Wheel base mm | 1650 | ||
| Min.Ground Clearance mm | 370 | ||
| Dry Mass Kg | 1500 | ||
| Engine | Model | LD4TE35A | |
| Type | Vertical, water-cooled, diesel engine | ||
| Number of cylinder | 4 | ||
| Rated Power Kw(hp) | 25.7(35) | ||
| Type | Front | 650-16 | |
| Rear | 11.2-24 | ||
| Clutch | Dry-type, single-acting,Often in combination with | ||
| Steering | Mechanical steering | ||
| Gear box | (4+1)*2 | ||
| PTO r/min | 540/720 | ||
| Counterweight device | Front 6*8Kg Rear 2*20Kg | ||
