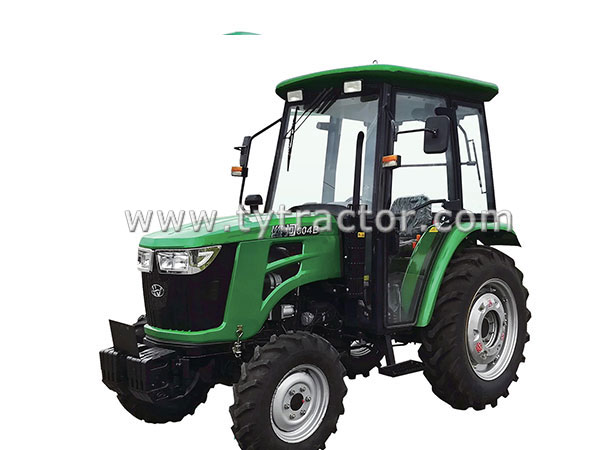

WH604 Tractor
Go back to Catalog: WH Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
WH604 Tractor Series
| Model | WH504 | WH604 | WH704 | WH804 | HW904 | ||
| Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | ||
|
Dimensions of Tractor (mm) |
Length | 3700 | 3700 | 3900 | 3900 | 4000 | |
| Width | 1710 | 1710 | 1795 | 1795 | 1900 | ||
| Height | 2160 | 2160 | 2300 | 2300 | 2610 | ||
| Tread | Front Wheel | 1250 | 1250 | 1300 | 1300 | 1300 | |
| Rear Wheel | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | 1200,1300(usual),1400 | ||
| Wheel Base | 1950 | 1950 | 2072 | 2072 | 2072 | ||
| Min. Ground Base | 325(the bottom of steering horizontal pulling rod) | 390(the bottom of steering horizontal pulling rod) | |||||
| Min. Usage Mass (kg) | 2500 | 2500 | 2700 | 2700 | 2750 | ||
| Engine | Model | quanchai495 | quanchai4105 | quanchai4108 | quanchai4108 | quanchai4110 | |
| Type | Vertical, water cooled and 4-stroke | ||||||
| Rated Power(kw) | 36.8 | 44.1 | 51.4 | 58.8 | 66.2 | ||
| Rated Rev.(r/min) | 2300 | 2400 | 2400 | 2300 | 2300 | ||
| Fuel | Diesel Oil | Diesel Oil | Diesel Oil | Diesel Oil | Diesel Oil | ||
| Tire | Front Wheel | 8.3-20 | 8.3-20 | 8.3-24 | 8.3-24 | 8.3-24 | |
| Rear Wheel | 12.4-28 | 12.4-28 | 14.9-30 | 14.9-30 | 14.9-30 | ||
| Clutch | dry-friction, single disc and two stage | ||||||
| Steering | Hydraulic type | ||||||
| Transmission Box | two shafts, 4×(3+3) composed | ||||||
| Suspension Type | Post Positioned Tri-point Suspension Catalogue I | ||||||
| PTO |
Type and Rev.(r/min) |
Post-position, half-independent, 540/760 or 540/1000(optional) |
|||||
| Spline Size |
I38 Rectangle Spline with 8 teeth |
||||||
