TZ12D Front End Loader, Tractor Front Loader, Loader Implements
Go back to Catalog: Front End Loader
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions

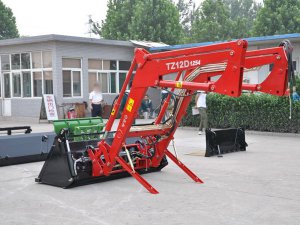

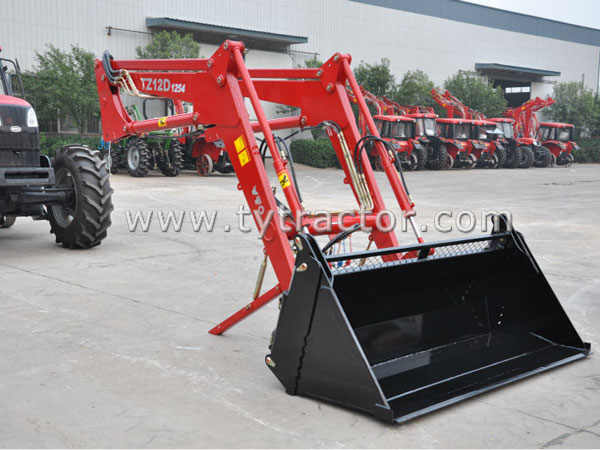

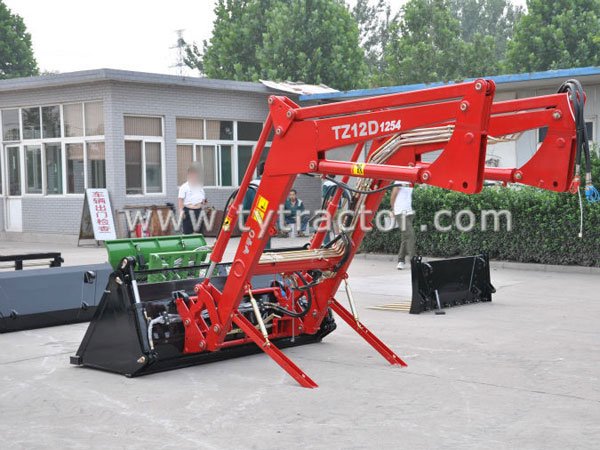

TZ12D Front End Loader Series
TZ Series Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage.
Specifications:
TZ Series Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage.
Specifications:
| Main Specifications of Front End Loader | |||||
| Model | TZ03A/B/C/D | TZ04A/B/C/D | TZ05A/B/C/D | TZ06A/B/C/D | |
| Matching Tractor | kw(hp) | 14.7~22.1(20~30) | 22.1~29.4(30~40) | 29.4~36.8(40~50) | 36.8~44.1(50~60) |
| Rated Lift Capacity | kg | 300 | 400 | 500 | 600 |
| Max. Dump Height | mm | 1800 | 2000 | 2100 | 2200 |
| Digging Depth | mm | 100 | 120 | 140 | 140 |
| Bucket Capacity | m3 | 0.18 | 0.3 | 0.35 | 0.4 |
| Dump Angle | (° ) | 42~45 | 42~45 | 42~45 | 42~45 |
| Weight | kg | 470~650 | 500~680 | 530~720 | 660~800 |
| Main Specifications of Front End Loader | |||||
| Model | TZ08A/B/C/D | TZ10A/B/C/D | TZ12A/B | TZ12C/D | |
| Matching Tractor | kw(hp) | 44.1~58.8(60~80) | 58.8~66.2(80~90) | 88.2~102.9(120~140) | 88.2~102.9(120~140) |
| Rated Lift Capacity | kg | 800 | 1000 | 1200 | 1200 |
| Max. Dump Height | mm | 2350 | 2350 | 2500 | 2500 |
| Digging Depth | mm | 180 | 180 | 200 | 200 |
| Bucket Capacity | m3 | 0.48 | 0.6 | 1 | 1 |
| Dump Angle | (° ) | 42~45 | 42~45 | 42~45 | 42~45 |
| Weight | kg | 680~830 | 800~980 | 960~1150 | 960~1150 |
