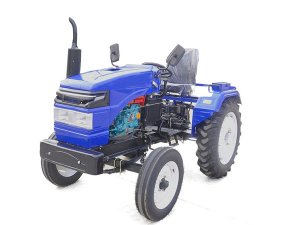

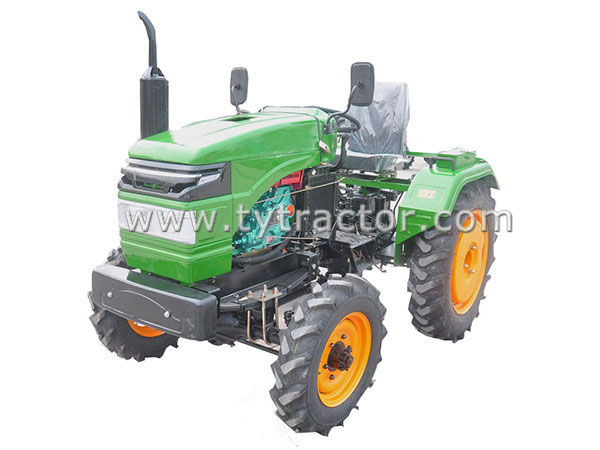

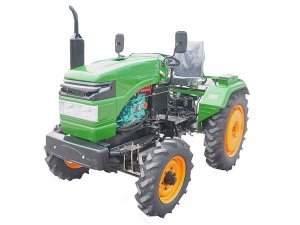

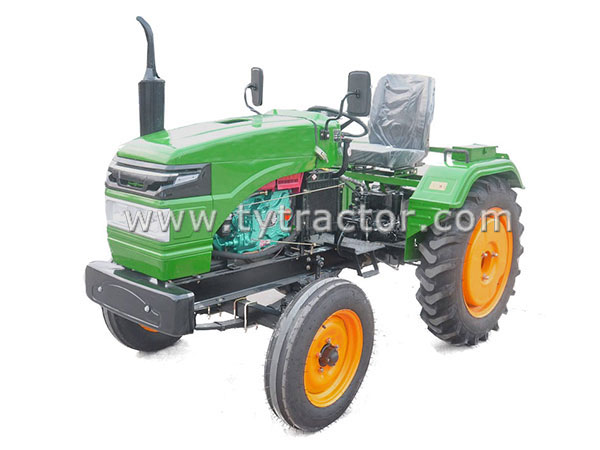

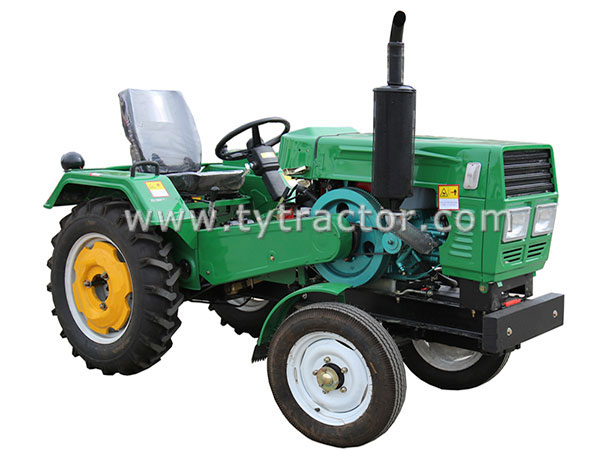

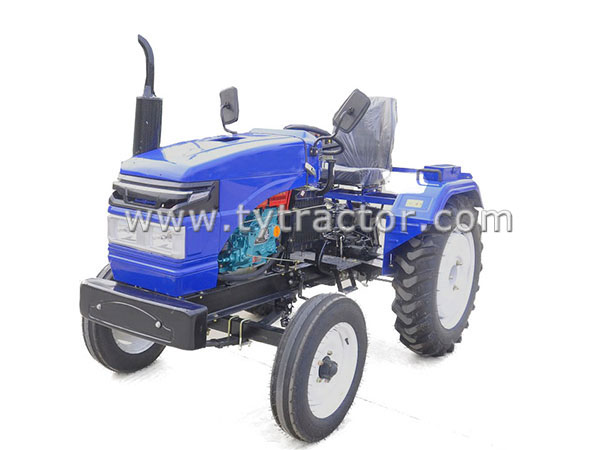

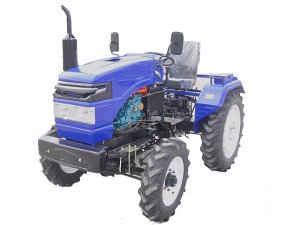

240/244 Belt Tractor, 24HP Tractor with 2WD,4WD
Go back to Catalog: HT Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
240/244 Belt Tractor Series
|
Model
|
BT-240/250
|
||
| Type | 2*4, for general agricultural purpose | ||
| Rated traction force (n) | 3800 | ||
| Tread (mm) | front | 960/1150 | |
| rear | 1200 | ||
|
Overall dimension (mm)
|
L | 2808/2908 | |
| W | 1225/1425 | ||
| H | 1385 | ||
| Wheelbase (mm) | 1400/1500 | ||
| Ground clearance (mm) | 245/295 | ||
| Weight (kg) | 825/880 | ||
| Min. turining radius (m) | 3/3.3 | ||
|
Diesel engine
|
type | Diesel engine, single-cylinder, water-cooled, 4 strokes | |
| Rated speed(r/min) | 2200 | ||
| Power (hp) | 24/25 | ||
| Fuel consumption | 252 g/kw/h | ||
|
transmission
|
clutch | Dry, double plates, constant mesh, friction | |
| gearbox | cylindric straight-tooth gear, combined type | ||
| Central transmission | Two-stage cylindrical gear | ||
| differential | Straight bevel planetary gear | ||
| brake | Shoe brak | ||
| How cluth work with engine | With belt | ||
| Steering device | worm type steering gear/hourglass worm steering | ||
|
|
How to drive | Driven by rear wheel | |
| Front axle | Integral type, unadjustable/ split type, adjustable | ||
| Front type | 4.50-16 | ||
| Rear type | 8.3-24 | ||
| Front type pressure | 245 | ||
| Rear type pressure | 147-245 | ||
|
Hydraulic device
|
Type | Internal circulation | |
| Oil pump | Gear pump, CBN-E306 | ||
| Hydro-sylinder | piston, single-stage | ||
| Distributor | Steering valve/ side valve | ||
| Flate rate of pump | 5 L/min | ||
| Opening pressure of safety value | 13.5o+0.5 Mpa | ||
| Rated lifting time | ≤3s | ||
|
|
type | Rear-mounted,three-point hitch, spherical hinge | |
| Low point | 420mm | ||
| Max. lifting | ≥2810/3970 | ||
| PTO | Side-mounted,dependent,rotating speed(r/min):1350 | ||
| Fuel rank (L) | 9 | ||
| Water rank(L) | 11.5 | ||
