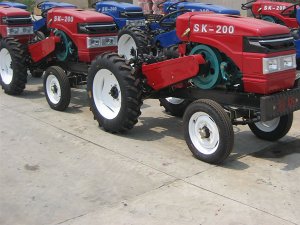

SK200 Tractor, 20HP Belt Driven Tractor
Go back to Catalog: HT Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
SK200 Tractor Series
| Model | SK180 | SK200 | SK240 | |
| one year guarantee | * | * | * | |
| Engine | Model | 1110 | 1115 | KM138/1120 |
| Power (kw) | 13.23 | 14.7 | 17.64 | |
| Type | single cylinders engine diesel, water cooling | |||
| condensation radiator type | o | o | o | |
| Tractor parameter | Type | 4x2 wheeled drive | ||
| Traction (kn) | 3.72/4.41 | 3.82/4.65 | 4.58/4.85 | |
| Length | 2630mm | |||
| Width | 1170mm | |||
| Height | 1290mm | |||
| Wheel base | 1400mm | |||
| Wheel track | 900/960mm | |||
| Min. ground clearance | 295mm | |||
| Min. steering radius | 2.8 | |||
| Dry weight (kg) | 845 | 845 | 880 | |
| Front ballast | o | o | o | |
| Rear ballast | * | * | * | |
| Forward speed | 2.10~32.20 km/h | |||
| Reverse speed | 1.70~7.80 km/h | |||
| Transmission | Single clutch | * | * | * |
| Double clutch | - | - | - | |
| (3+1)*2 shift gearbox | - | - | - | |
| (4+1)*2 shift gearbox | o | o | o | |
| Differential lock | * | * | * | |
| running system | Frame type | Rigidity frameless | ||
| Tyre | 7.50-20 | |||
| Power steering | - | - | - | |
| Air brake | o | o | o | |
| Brake | Toe type | |||
| Park brake | Latch pedal | |||
| Working system | Hydraulic hitch | * | * | * |
| Floating positional control hydraulic hitch | - | - | - | |
| Max. lift force | 3430 | 3626 | 3975 | |
| Hitch system | Rear mounted, 3 point hitch linkage | |||
| Swing drawbar | - | - | - | |
| Side PTO shaft type | Rear non-independent, diameter 35mm, rectangle spline type I, 6 teeth | |||
| Rear PTO | o | o | o | |
| Hydraulic output | * | * | * | |
| hydraulic ouput valve | - | - | - | |
| ROPS | o | o | o | |
| Top grade seat | o | o | o | |
| Ammeter | * | * | * | |
| Oil press gauge | * | * | * | |
| Water tem. gauge | * | * | * | |
| Timer | - | - | - | |
| Air press gauge | o | o | o | |
| Combine gauge | - | - | - | |
| Fan cabin | o | o | o | |
| Warm air cabin | - | - | - | |
| A/C cabin | - | - | - | |
| * with this configure o optional configure - without this configure | ||||
