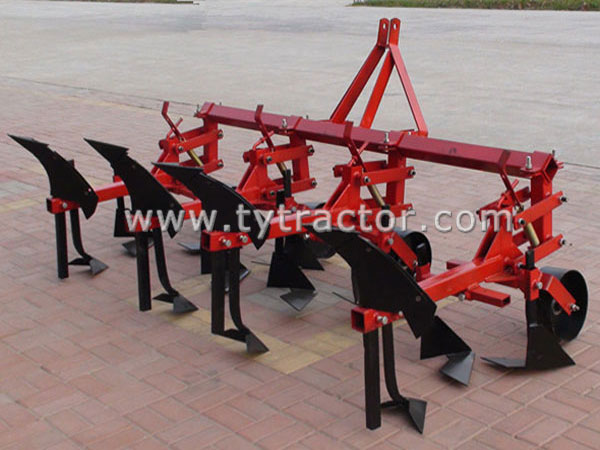

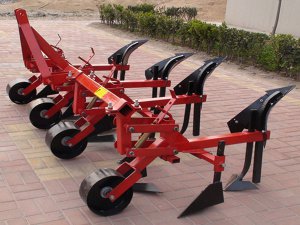

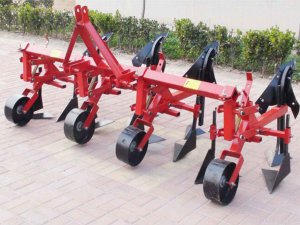

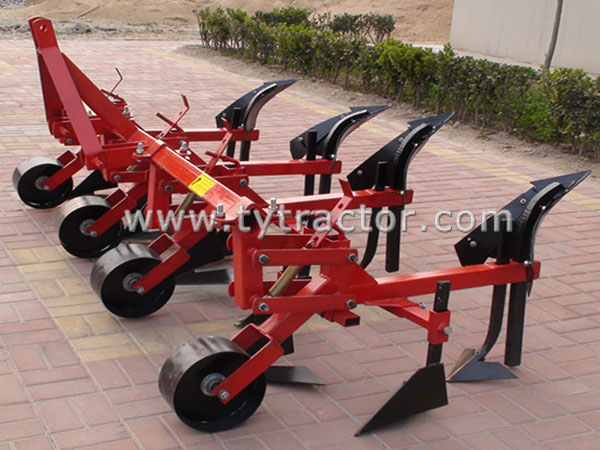

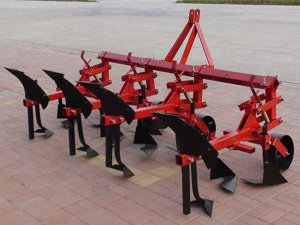

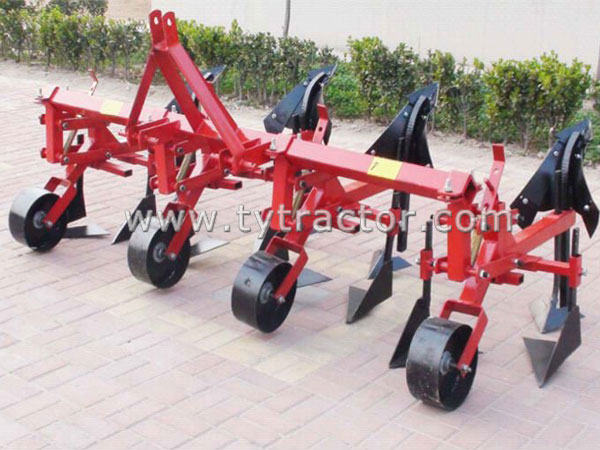

3ZY Tyne Ridging Cultivator, Tractor 3 Point Cultivator
Go back to Catalog: Cultivator
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
3ZY Tyne Ridging Cultivator Series
Technique parameter:
This type of tractor cultivator andridger used for ridge the plot, till the spacings before and initially after the crops spring up, The ridger with a harrow or a dressing unit operates on all mineral soils containing minimum rocks, with absolute humidity 13-20% for the layer 0…12 cm. The cultivator/ ridger shaped ridges with better physical properties on medium textured soil; however both drawn cultivators/ ridgers had greater work-rates, and also needed less energy to cultivate a unit of area.
• Heat treated, high carbon spring steel tines
• Multifunction, can achieve cultivation and ridge shaping at the same time
• The distance between rows are adjustable
• Multifunction, can achieve cultivation and ridge shaping at the same time
• The distance between rows are adjustable
| Model | unit | 3ZY-1.2 | 3ZY-2.0 | 3ZY-2.8 |
| Working width | mm | 1200 | 2000 | 2800 |
| No.of legs | 2 | 3 | 4 | |
| Working depth | mm | 100-240 | ||
| Row spacing | mm | 500~800 | ||
| Total weight | kg | 150 | 210 | 290 |
