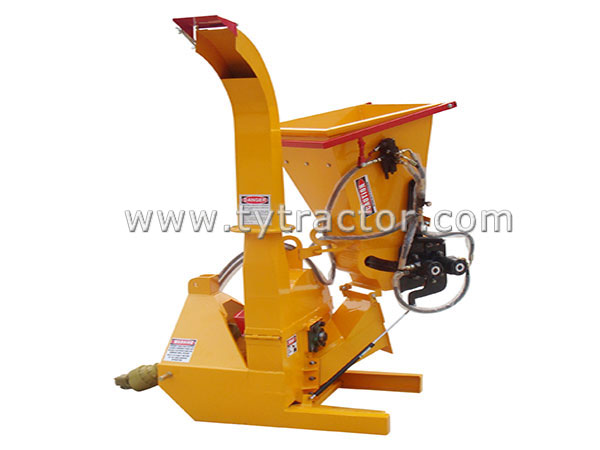

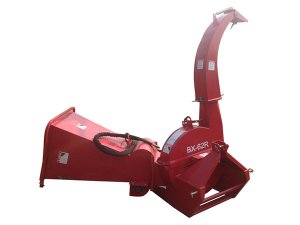

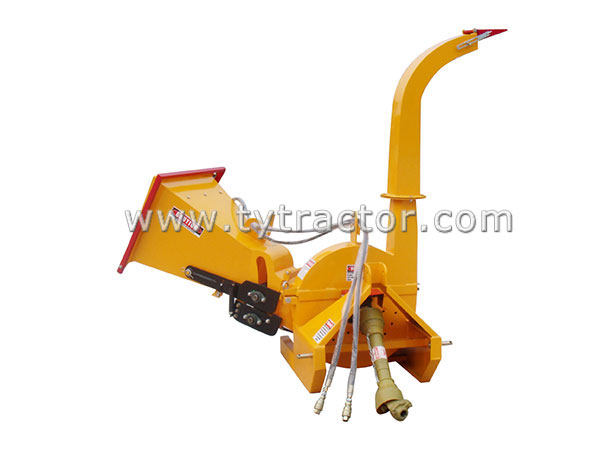

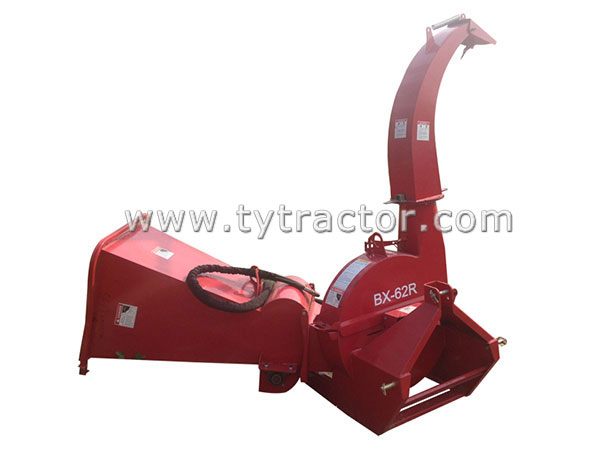

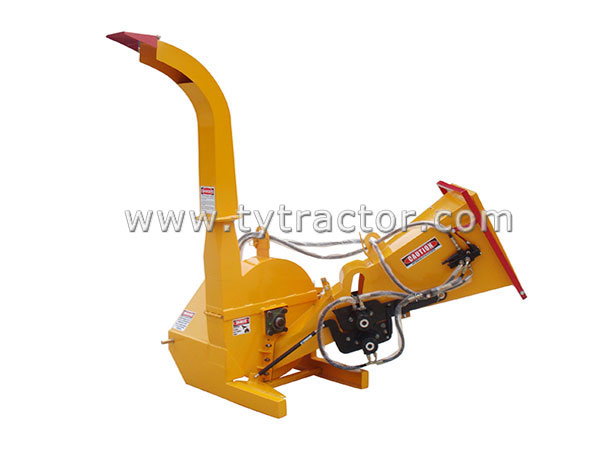

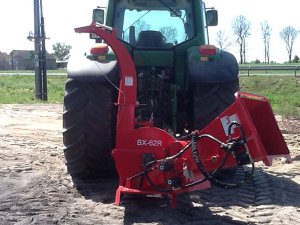

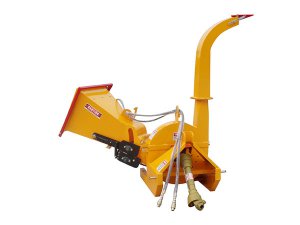

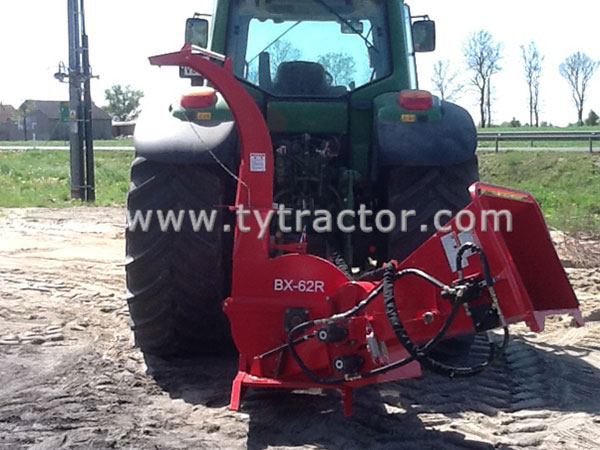

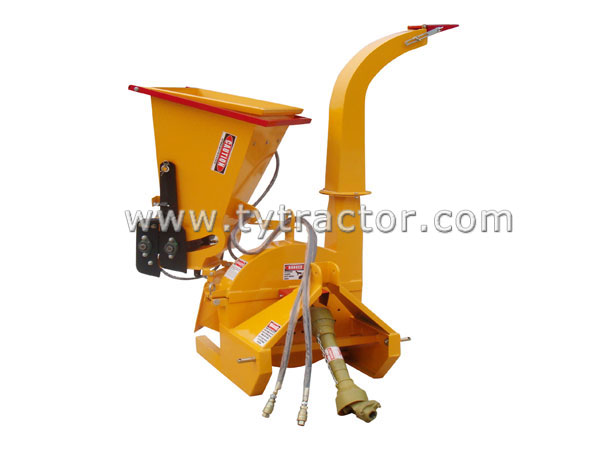

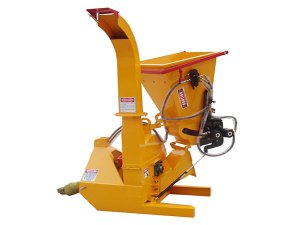

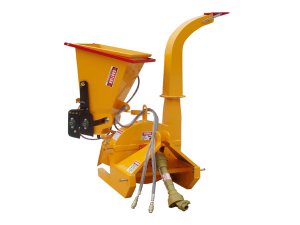

BX62R Wood Chipper, PTO Wood Chipper, Tractor Wood Chipper
Go back to Catalog: Wood Chipper
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
BX62R Wood Chipper Series
| Model | BX42S / BX42R | BX62S / BX62R | BX92R |
| Drive System | Direct drive, PTO shaft | Direct drive, PTO shaft | Direct drive, PTO shaft |
| HP requirements for max. cap. | 18-60 | 40-100 | 60-120 |
| HP Range | 18-50 | 30-100 | 65-150 |
| Chipper Capacity | 4" Dia. (max. 12" slab) | 6" Dia. (max. 12" slab) | 10" Dia. (up to 14" slab) |
| Chipper Housing Opening | 4"x10" | 6½" x 12" | 10½" x 14" |
| Rotor Size | 25" | 30" | 36" |
| Number of Rotor Knives | 4 | 4 | 4 |
| Knife Type | Hardened tool steel | Hardened tool steel | Hardened tool steel |
| Rotor Weight | 110 lbs. | 180 lbs. | 280 lbs. |
| Feeding System Feed | Self Feed / Hydraulic Feed | Self Feed / Hydraulic Feed | Hydraulic Feed |
| Mounting System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
| Dimensions (Hopper Folded) | 40"L x42"W x 60"H | 50"L x 52"W x 74"H | 54"L x 52"W x 88"H |
| Hopper Opening | 20" x 20" | 25" x 25" | 25" x 25" (635X635mm) |
| Discharge Hood Rotation | 360° | 360° | 360° |
| Discharge Hood Height | 60" | 74" | 84" |
| Rated RPM | 540-1000 | 540-1000 | 540-1000 |
| Weight | BX42S-495 lbs BX42R-690lbs | BX62S-720 lbs BX62R-1070lbs | 1435 lbs |
