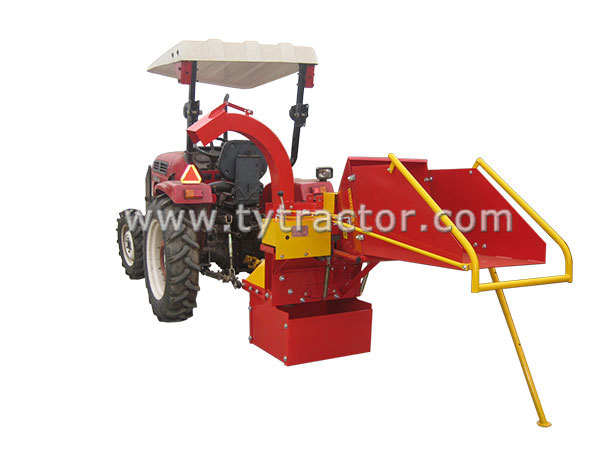

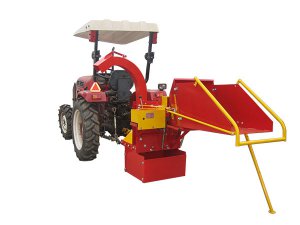

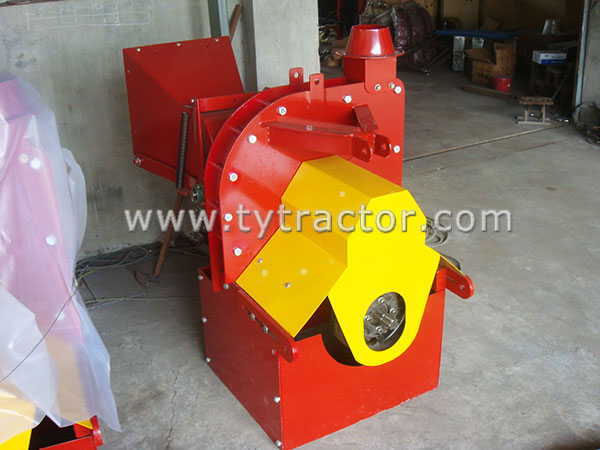

JM-8 Wood Chipper, Jinma Wood Chipper Shredder
Go back to Catalog: Wood Chipper

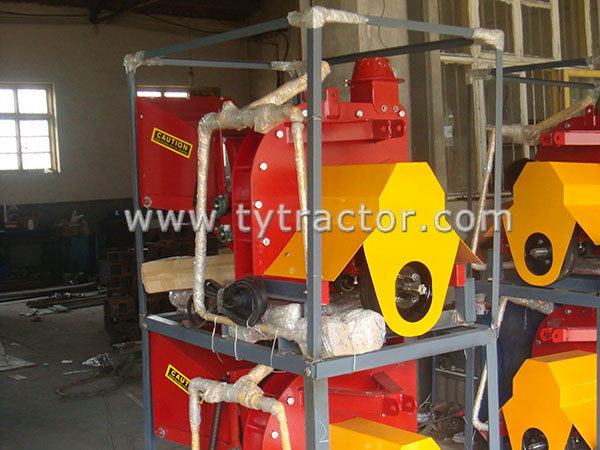

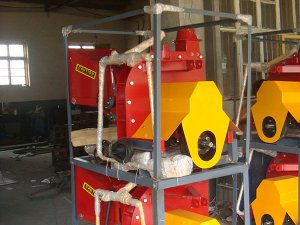

Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions

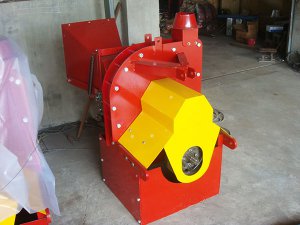

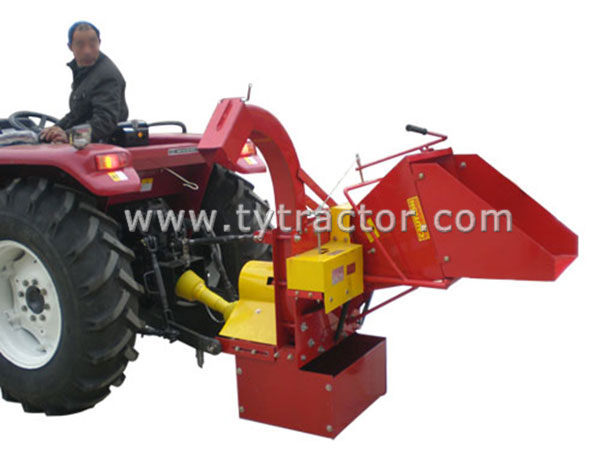

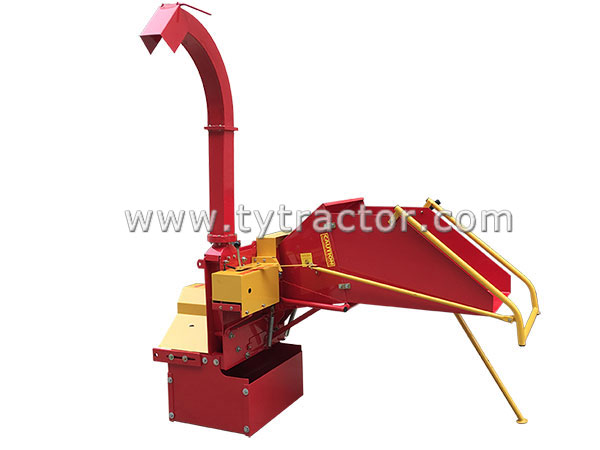

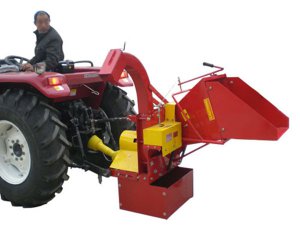

JM-8 Wood Chipper Series
| Technical details of PTO driven model Wood Chipper | ||
| Model | TH- 8 | TM- 8 |
| Max. Dia. of Feeding | 8'' | |
| POWER | Tractor (18~100hp, 540/720rpm) | |
| Diameter of Chipper Disk | 600mm | 600mm |
| Turning Speed of Chipper Disk | 1080rpm/1410rpm | |
| Feeding System | Hydraulic Feeding, | Feeding by Worm Reduction |
| Adjustable Speed, | Gear(4mm/s) | |
| Stop-Reverse-Forward Function | Only Forward Function | |
| Blade material |
Durable Chromium CR-12 |
|
| Sawdust Measurement | Thickness<4mm | |
| Rotation Angle of Discharge Spout | 360 | |
| Weight | 450kg(990LBS) | 420kg(930LBS) |
| Working Efficiency | 8~9m 3 /h | 6~9m 3 /h |
| Volume of TANK | 26L | / |
| PACKAGE DIMENSIONS (L×B×H) | 1150×900×1300 (mm) | 1150×900×1300 (mm) |
| 20GP/40HC container | 22unit/46units | 22units/46units |
