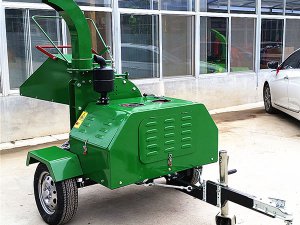

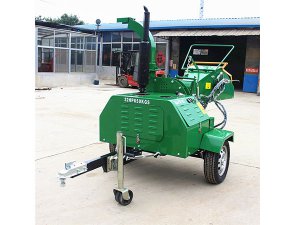

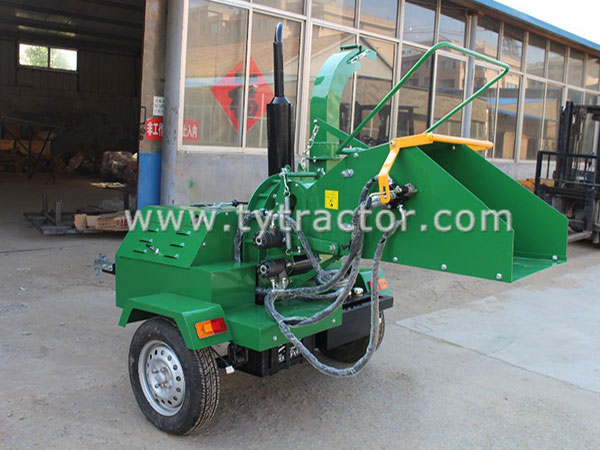

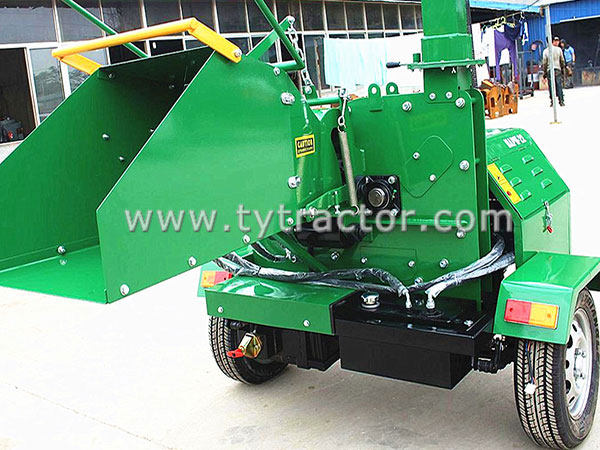

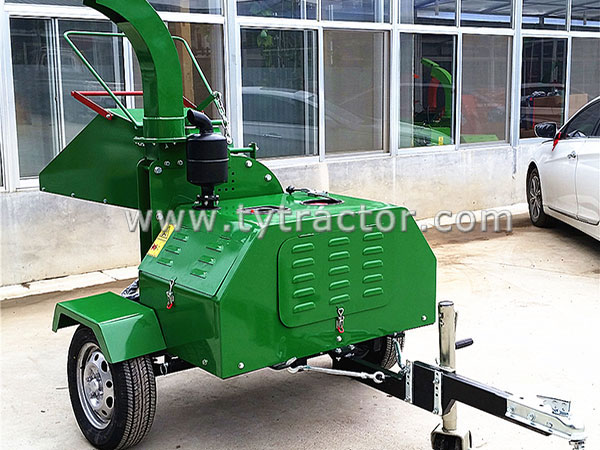

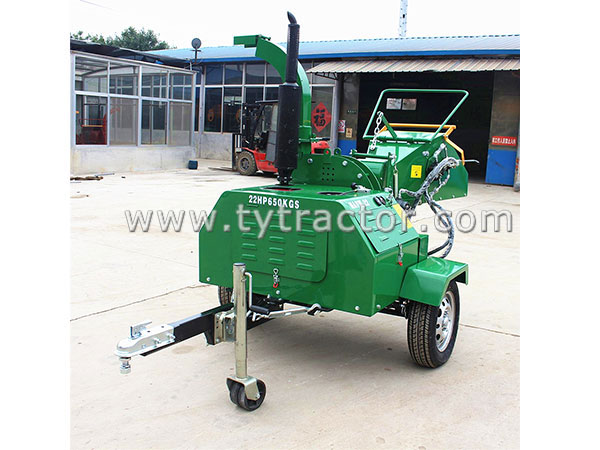

DH22 Wood Chipper, 22HP Diesel Engine Diesel Engine Wood Chipper
Go back to Catalog: Wood Chipper
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
DH22 Wood Chipper Series
| MODEL | WC-22DH | |
| Max. Dia. of Feeding | 8 inch | |
| Power | Diesel 1115(22hp,1 Cylinder,2000rpm) | |
| Flywheel Diameter | 600mm | |
| Flywheel Turning Speed | 1025rpm | |
|
Feeding System |
Hydraulic Feeding, Adjustable Speed Stop-reverse-forward function |
REDUCTION BOX FEEDING Only forward function |
| BLADE QUANTITY | 2 OR 4(NOT TO BE RECOMMENDED) | |
| SAWDUST MEASUREMENT | THICKNESS<4mm | |
| FEEDING OUTLET ROTATION ANGLE | 360 | |
| WEIGHT | 570kg | |
| WORKING EFFICIENCY |
8~9m3/h |
|
| VOLUME OF TANK | 26L | / |
|
(L×B×H)(mm) PACKAGE DIMENSIONS(L×B×H) (mm) |
1350×1360×136 | |
