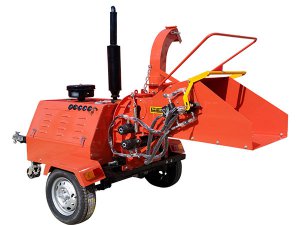

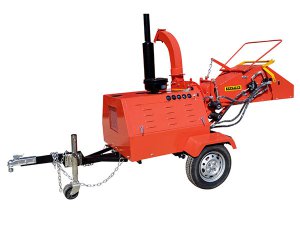

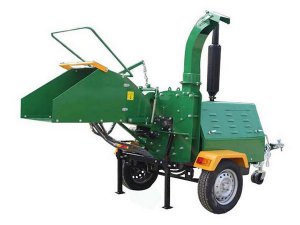

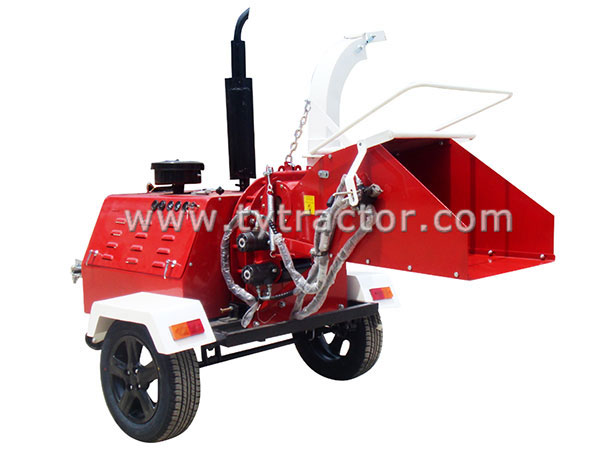

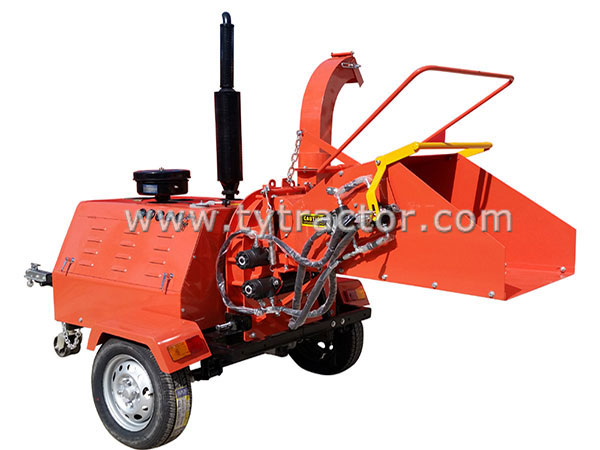

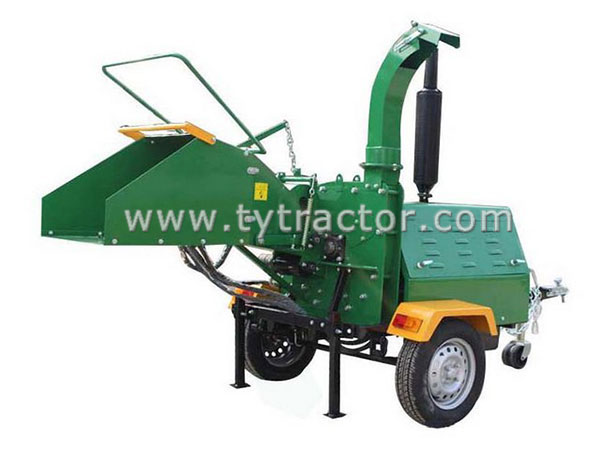

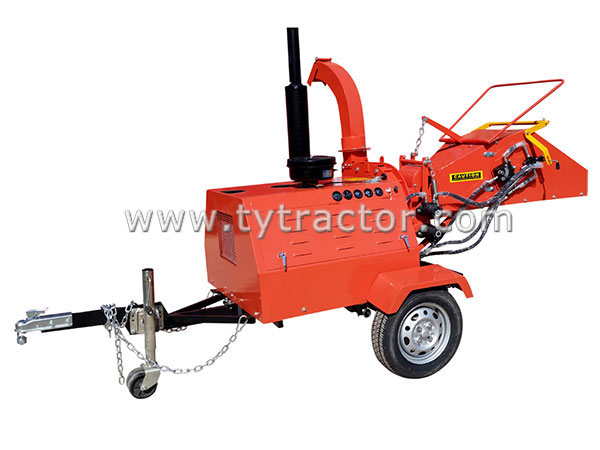

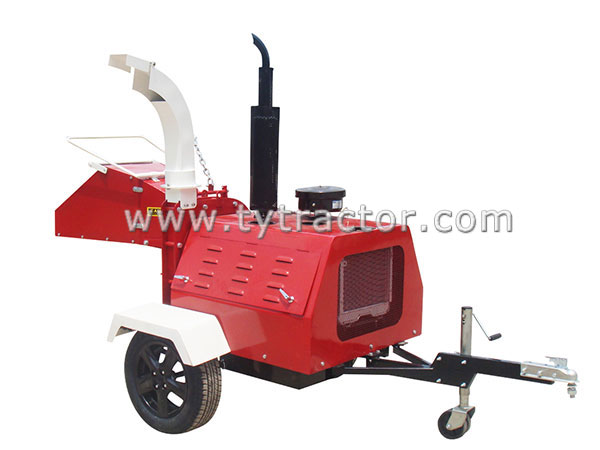

DH30 Wood Chipper, Hydraulic Feeding Wood Chipper
Go back to Catalog: Wood Chipper

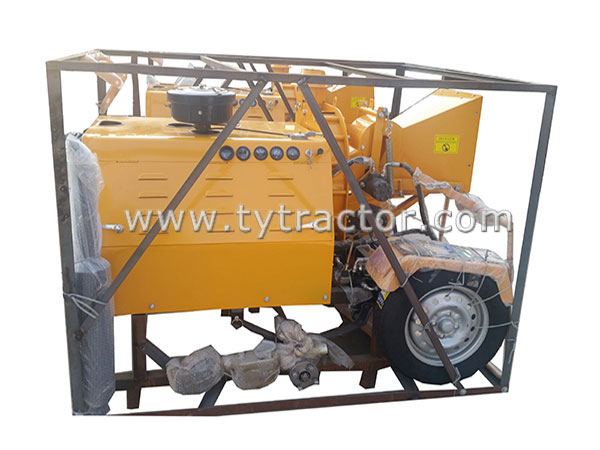

Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
DH30 Wood Chipper Series
Main specifications of DH-30 30hp Changchai 390Q diesel engine,hydraulic feeding,trailed wood chipper machine with CE for sale
Main specifications of DH-30 30hp Changchai 390Q diesel engine,hydraulic feeding,trailed wood chipper machine with CE for sale
| Item | DH30 | DH40 | DH50 |
| Max. dia. of feeding | 8''/200mm | 8''/200mm | 8''/200mm |
| Diesel engine model | Changchai 390Q with CE Certificate (30hp, 3 cylinders) | Changchai 490Q with CE Certificate (40hp, 4 cylinders) | Changchai 4L68 with CE Certificate (50hp, 4 cylinders) |
| Flywheel diameter | 600mm | 600mm | 600mm |
| Flywheel turning speed | 1025rpm | 1025rpm | 1025rpm |
| Feeding system | Hydraulic Feeding, Adjustable Speed stop-reverse-forward function | Dual Hydraulic Feeding, Adjustable Speed stop-reverse-forward function | Hydraulic Feeding, Adjustable Speed, stop-reverse-forward function |
| No.of blades | 2 blades recommended and 4 blades can be customized, but not be recommended for 600mm flywheel. | 2 blades recommended and 4 blades can be customized, but not be recommended for 600mm flywheel. | 2 blades recommended and 4 blades can be customized, but not be recommended for 600mm flywheel. |
| Sawdust measurement | thickness <4mm | thickness <4mm | thickness <4mm |
| Feeding outlet rotation angle | 360° | 360° | 360° |
| Tyre size | 155-65R13, tubeless tire | 155-65R13, tubeless tire | 155-65R13, tubeless tire |
| Hydraulic oil tank | 26L | 26L | 26L |
| Working efficiency | 8~9m3/h | 8~11m3/h | 10~14m3/h |
| Weight | 1350 lbs/610kg | 1400 lbs/635kg | 1650 lbs/750kg |
| Packing size | 1750×1450×1350 | 1750×1450×1350 | 1780×1500×1350 |
| Delievery date | Within 25 days | Within 25 days | Within 25 days |
