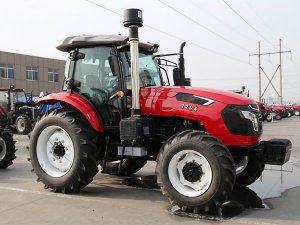

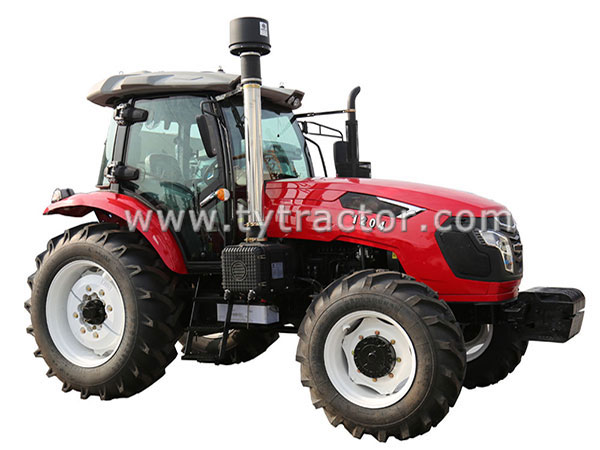

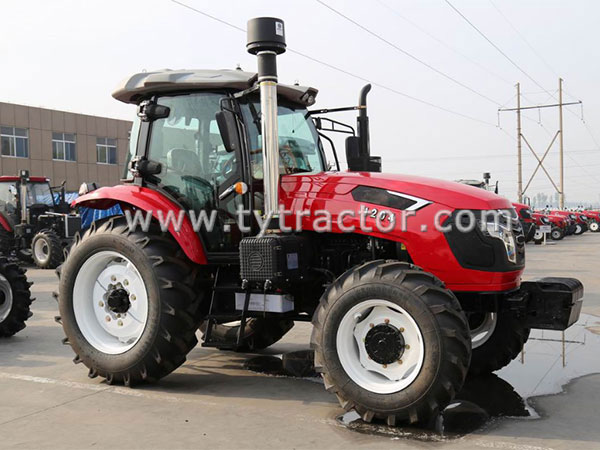

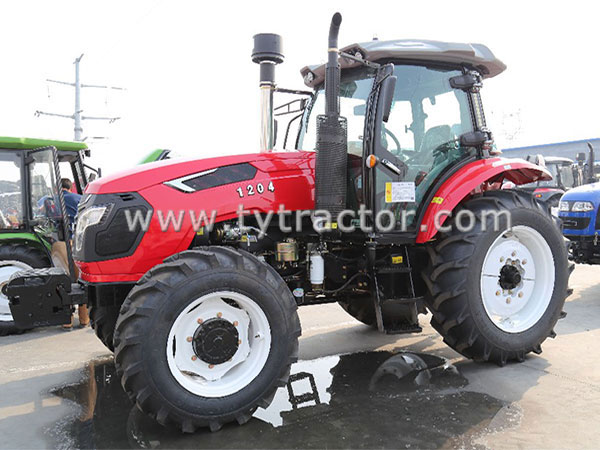

HM1204 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
HM1204 Tractor Series
| Model | HM1204 | ||
| Overall Dimension(L×W×H) | mm | 4600×2150×2870 | |
| Min. Operating Weight | kg | 4205 | |
| Wheel base | mm | 2510 | |
| Wheel track | Front | mm | 1610 |
| Rear | mm | 1620 | |
| Min. Ground Clearance | mm | 430 | |
| Min.Turning Radius | mm | 5500 | |
| Gears | / | 16F+8R | |
| Engine | Max Torque | N·m | 430 |
| Displacement | L | ||
| Fuel Tank Capacity | L | 240 | |
| Engine Rated Power | KW | ||
| Rated Operating Conditions Fuel Consumption Rate | g/kW·h | ||
| Drive Train | Clutch | / | Single disc,dry,independent dual-stage |
| Standard PTO speed | rpm | (760/850)/(540/760)/(760/1000)/(540/1000) | |
| Gear Shift Mode | / | Meshing gear shift | |
| Break System | Type | / | Mechanical brake,hydraulic brake, disc |
| Walk System | Front Tire | / | 12.4-24 |
| Rear Tire | / | 16.9-34 | |
| General Parameter | Max.Lifting Capacity | KN | 21.2 |
| Tillage Depth Adjustment | / | Draft and position adjustable | |
