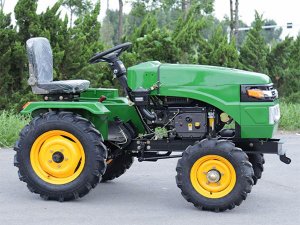

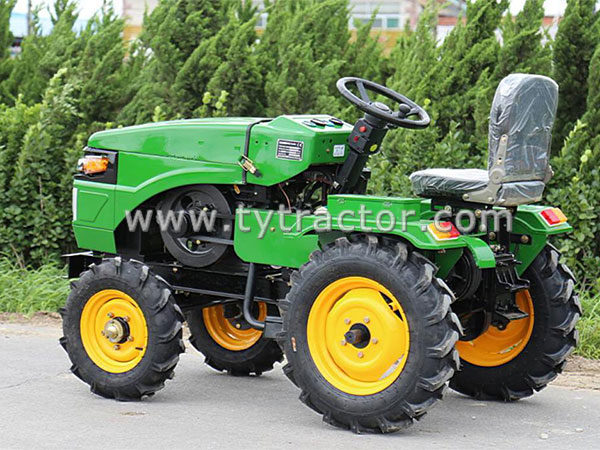

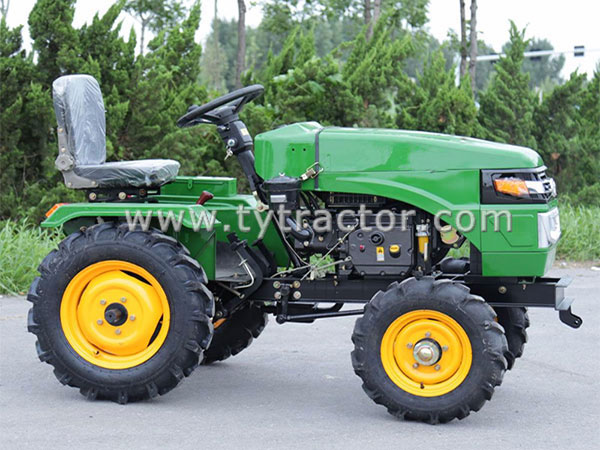

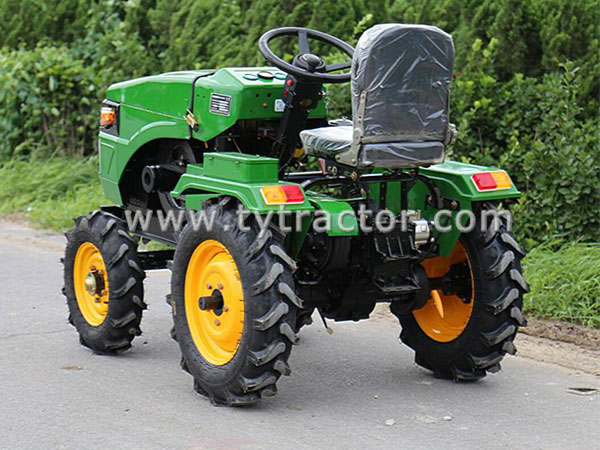

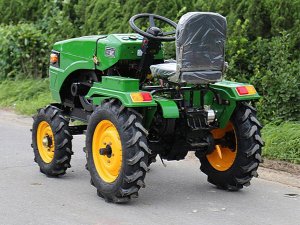

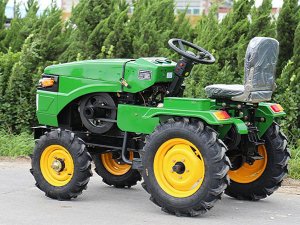

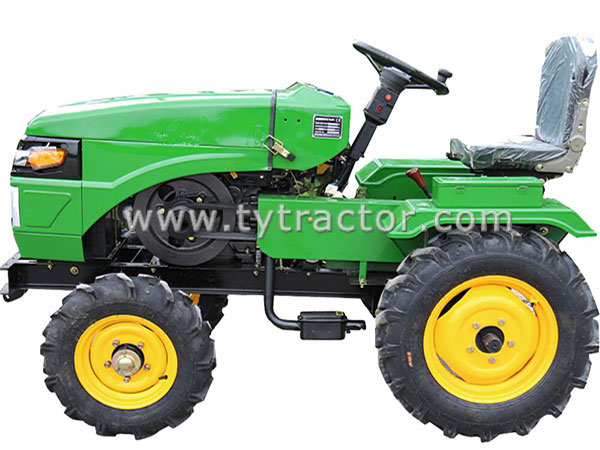

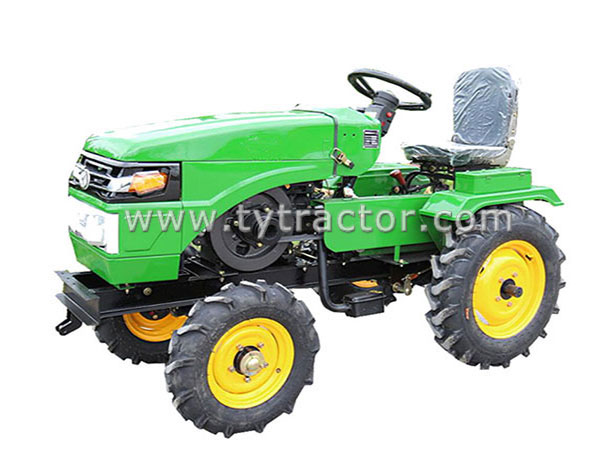

HM244 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
HM244 Tractor Series
Product Application
Model: TY 240/244
Wheeled type: 4x2/4x4
Length (mm): 2654/2768
Width (mm): 1296/1514
Height (mm): 1365
Front Wheel Tread (mm): 1000 or 1200
Rear Wheel Tread (mm): 1000 or1200
Min Ground Clearance (mm): 330/266 mm
Dry Mass (kg): 1010/1130
Engine:
Model : 295
Type: Vertical, 2-Cylinder, Water Cooled and 4-stroke)
Rated Power (kw): 18.4
Rated Rev (r/min): 2400
Fuel: Diesel Oil
Clutch: Dry-friction, Single Stage
Steering: Mechanical Type or Hydraulic type
Transmission Box: (3+1)x2
Theoretical Speed (km/h):
Forward: 2.11, 4.18, 6.97, 9.77, 19.31, 32.19
Reverse: 1.68, 7.75
Tyre :
Front wheel: 4.00-16/6.00-12
Rear wheel: 8.30-24
Suspension Type: Post Positioned Tri-point Suspension Catalogue 0
PTO shaft:
Type and Rev: Non-independent Type 540
Spline Size: I35 Rectangle with 6 teeth(6-28.91x34.79x8.69)
Packing mode: With iron frame
Qty. /40’ FCL: 22/20 sets
Wheeled type: 4x2/4x4
Length (mm): 2654/2768
Width (mm): 1296/1514
Height (mm): 1365
Front Wheel Tread (mm): 1000 or 1200
Rear Wheel Tread (mm): 1000 or1200
Min Ground Clearance (mm): 330/266 mm
Dry Mass (kg): 1010/1130
Engine:
Model : 295
Type: Vertical, 2-Cylinder, Water Cooled and 4-stroke)
Rated Power (kw): 18.4
Rated Rev (r/min): 2400
Fuel: Diesel Oil
Clutch: Dry-friction, Single Stage
Steering: Mechanical Type or Hydraulic type
Transmission Box: (3+1)x2
Theoretical Speed (km/h):
Forward: 2.11, 4.18, 6.97, 9.77, 19.31, 32.19
Reverse: 1.68, 7.75
Tyre :
Front wheel: 4.00-16/6.00-12
Rear wheel: 8.30-24
Suspension Type: Post Positioned Tri-point Suspension Catalogue 0
PTO shaft:
Type and Rev: Non-independent Type 540
Spline Size: I35 Rectangle with 6 teeth(6-28.91x34.79x8.69)
Packing mode: With iron frame
Qty. /40’ FCL: 22/20 sets
