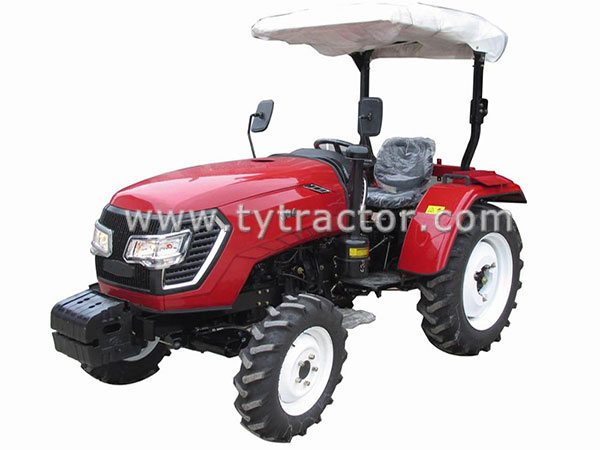

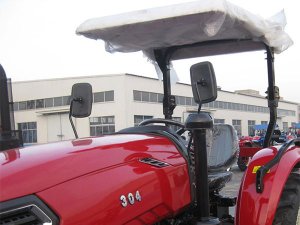

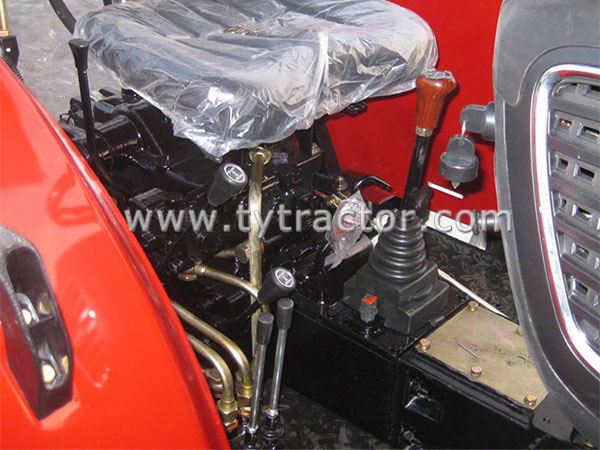

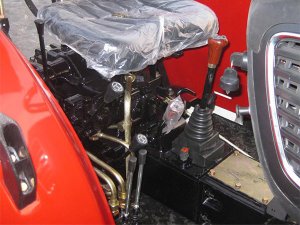

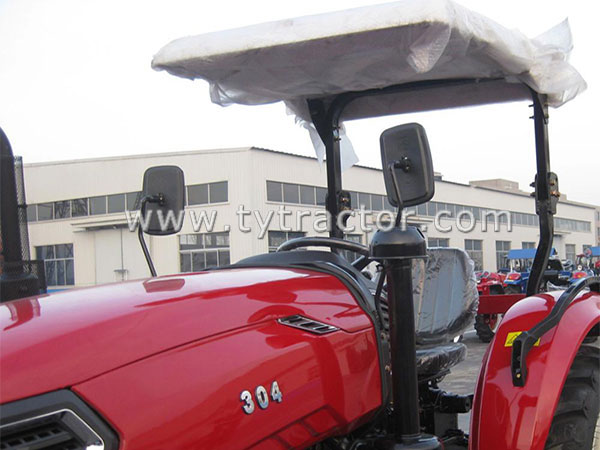

HM304 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
HM304 Tractor Series
| HM304 SPECIFICATION | |
| Model | HM304 |
| Drive type | 4*4 |
| Engine | |
| Engine brand | LD |
| Model | KM390BT |
| Type | 4 cylinder, Water-cooling, In-line, 4 stroke |
| Rated speed (r/min) | 2350 |
| Engine power (hp) | 30hp |
| Transmission | |
| Clutch | Dry, single-stage clutch |
| PTO size | 6teeth-φ35 |
| PTO Speed(rpm) | 540/720 |
| Gear shift | 8+2 |
| Hydraulic system | |
| Hydraulic output valve | One way |
| Three point linkage | |
| Category of 3-point link | Category I |
| Technical parameter | |
| Dimension(L*W*H) mm | 3250*1500*2130 |
| Min. operation weight | 1400kg |
| Wheel base(mm) | 1750 |
| Track base(mm) front wheel | 1200 |
| Track base(mm) rear wheel | 1200 |
| The smallest clearance(mm) | 360 |
| Front tyre | 6.0-16 |
| Rear tyre | 9.5-24 |
| Steering type | Hydraulic power steering |
