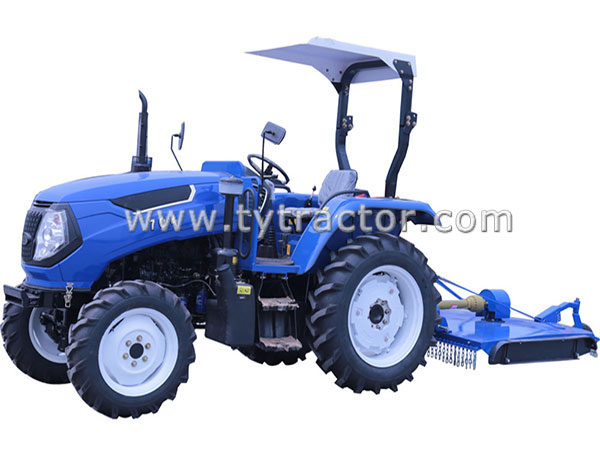

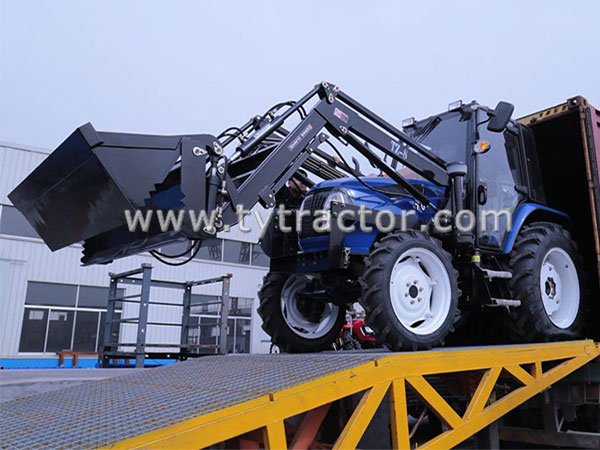

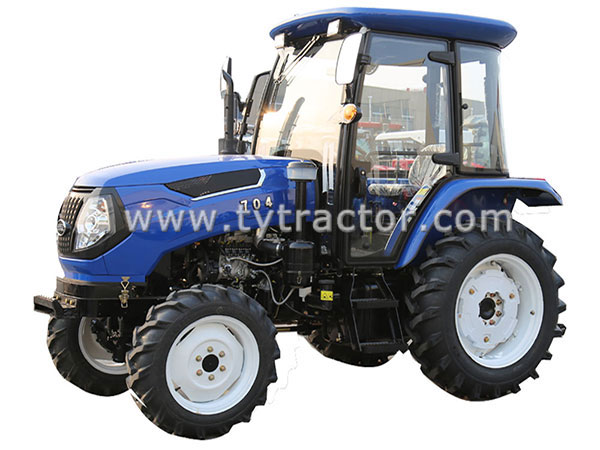

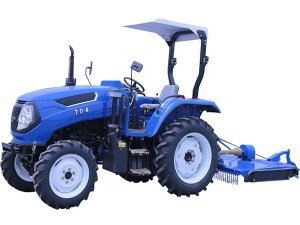

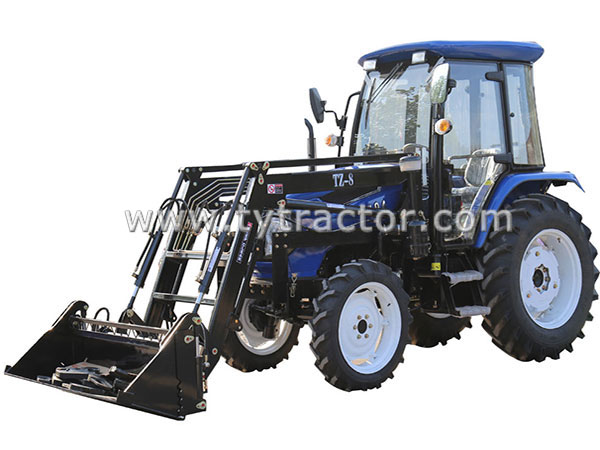

HM704 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
HM704 Tractor Series
| HM704 SPECIFICATION | |
| Model | HM704 |
| Drive type | 4*4 |
| Engine | |
| Engine brand | QC |
| Model | 4108 |
| Type | 4 cylinder, water-cooling, In-line, direct injection |
| Rated speed (r/min) | 2400 |
| Engine power (hp) | 70hp |
| Transmission | |
| Clutch | Dry, Dual-stage type |
| PTO size | 8 teeth, φ38 |
| PTO Speed(rpm) | 540/760 |
| Gear shift | 12F+12R shuttle shift |
| Hydraulic system | |
| Hydraulic output valve | 2-Way optional |
| Three point linkage | |
| Category of 3-point link | Rea, Category II |
| Technical parameter | |
| Dimension(L*W*H) mm | 3900*1710*2160 |
| Min. net weight | 2500kg |
| Wheel base(mm) | 1980 |
| Front wheel tread(mm) | 1300 |
| Rear wheel tread(mm) | 1300-1500 |
| Min. clearance(mm) | 410 |
| Front tyre | 8.3-24 |
| Rear tyre | 14.9-30 |
| Steering type | Hydraulic steering |
