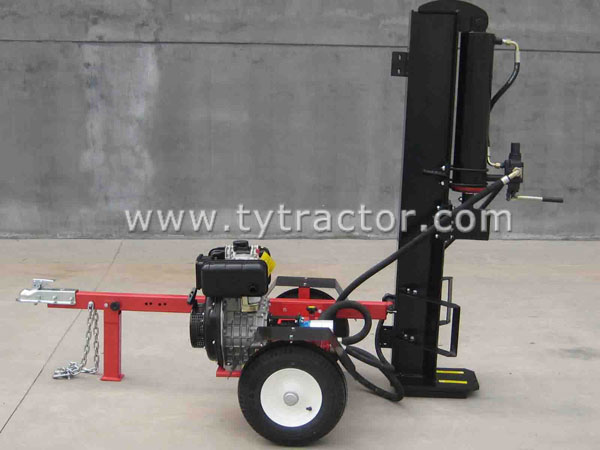

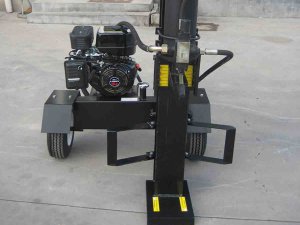

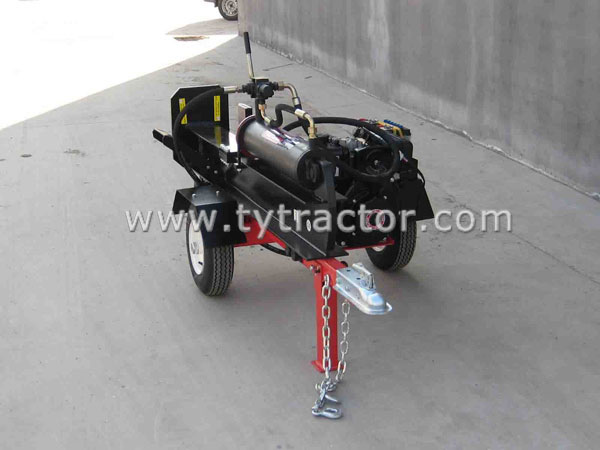

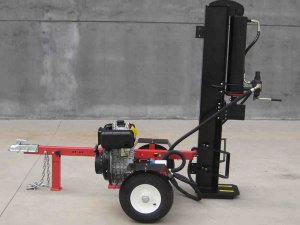

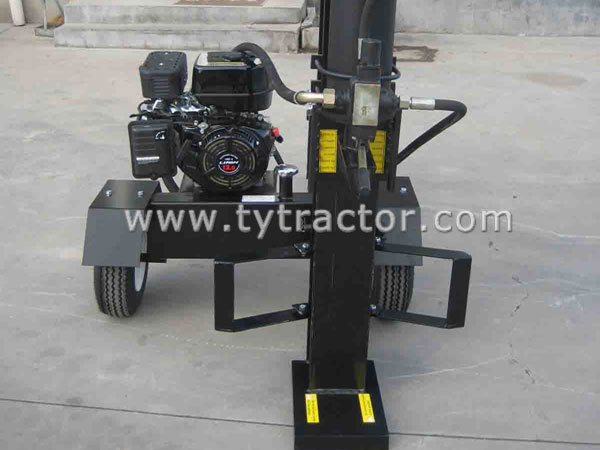

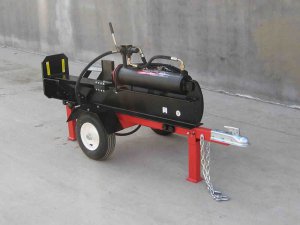

Hydraulic Diesel Log Splitter, Firewood Log Splitter With Log Tray
Go back to Catalog: Log Splitter
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
Hydraulic Diesel Log Splitter Series
| Model No. | LWS610-32T | LWS610-37T | LWS610-42T | LWS610-45T |
| Capacity of cutting wood |
Length: 15-61cm Diameter: 15-65cm |
Length: 15-61cm Diameter: 15-75cm |
Length: 15-61cm Diameter: 15-85cm | Length: 15-61cm Diameter: 15-100cm |
| Operation | Horizontal | |||
| Engine | 9hp Petrol | 13hp Petrol | 15hp Petrol | 15hp Petrol |
| Optional | with electric start with battery adds | |||
| Low oil shutdown | YES | |||
| Cycle time(sec) | 11 | 11 | 11 | 11 |
| Automatic cylinder return | YES | |||
| Cylinder size | 4.5'' x24''x1.75'' | 5'' x24''x3.15'' | 5.5"×24''x3.15'' | |
| Pump flow | 16GMP, 2-stage | 22GMP, 2-stage | ||
| Capacity oil(L) | 30.5 L | |||
| Log Lift | Hydraulic | |||
| Wedge Lift | Hydraulic | |||
| 4-Way Wedge | Standard | |||
|
6-Way Wedge |
Optional | |||
| Tire | 16" 6.5-8,4.0-8,4.8-8 | |||
| Battery (12V/36A) | YES | |||
| N.W./G.W. | 400/430KG | 410/440KG | 420/453KG | 430/465KG |
| Container loading: |
Wooden pallets Size:170×60×65cm 36/78PCS Iren palltessize: 186 x57 x56 cm 40/84PCS |
|||
| Warranty | 18 months | |||
