Towable Backhoe, Self Powered Backhoe, Self-contained Mini Excavator
Go back to Catalog: Backhoe
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions

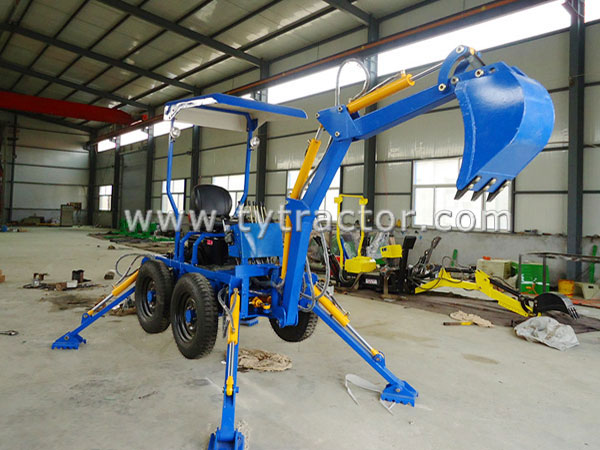

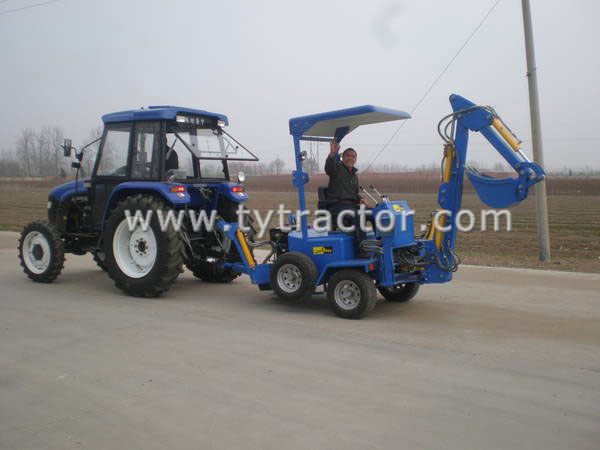

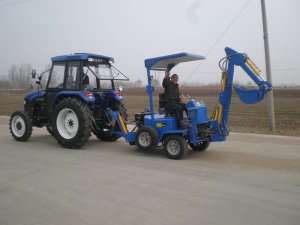

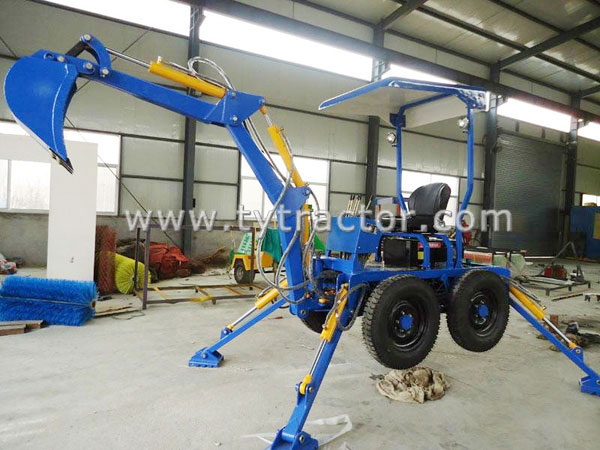

Towable Backhoe Series
Towable Backhoe, It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
Towable Backhoe, It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
| MODEL | ATV-9 |
| Power | 9HP Gasoline engine |
| STRUCTURE WEIGHT | 550kgs |
| MAX DIGGING DEEP | 2400mm |
| MAX DIGGING RADIUS | 2800mm |
| MAX DIGGING HEIGHT | 2500mm |
| MAX UNLOADING HEIGHT | 1200mm |
| STABILIZER WIDTH | 1800mm |
| SWING ANGLE FOR BOOM | 140 degree |
| BUCKET TURNNING ANGLE | 160 degree |
| BUCKET CUBAGE | 0.036m³ |
| BUCKET WIDTH | Optional: 220mm/300mm/400mm/500mm,600mm |
| PUMP | DOUBLE SPEED GEAR PUMP |
| COUPLER SIZE | 2" BALL FOR EASY TOWING |
| DIMENSIONS (L x W x H) | 1800mmx1100mmx900mm |
