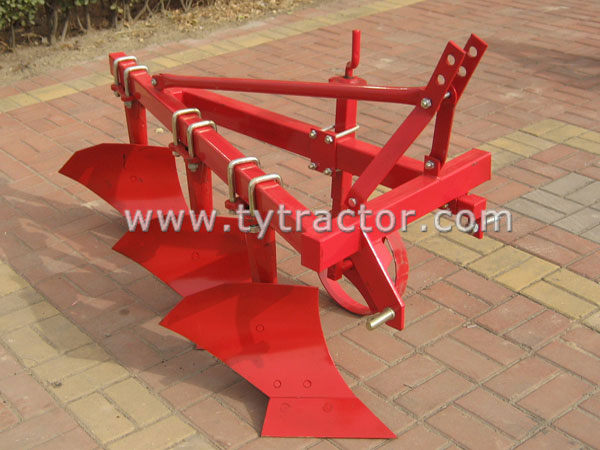

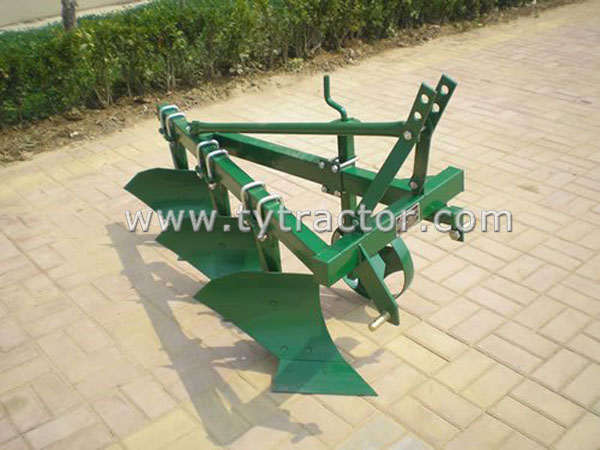

1L Share Plough, Tractor Plow, (20/25/30/35) Share Plough

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, Reliability
Custom Farm machienry Get a Discount Price,Order now or contact if you have any questions

Product Detail
Online Inquiry

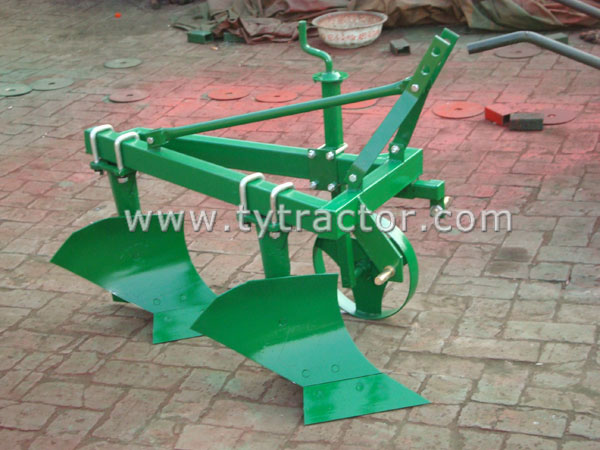

1L Share Plough Series

Model	Unit	1L-220	1L-320	1L-420	1L-520
Working width	m	0.4	0.6	0.8	1
Working depth	mm	140-180	140-180	140-180	140-200
No.of bottoms		2	3	4	5
Overall weight	kg	60	80	100	110
Matched power	hp	12-20	15-25	20-25	40-50
Linkage		Standard three point mounted

Model	Unit	1L-225	1L-325	1L-425	1L-525
Working width	m	0.5	0.75	1	1.25
Working depth	mm	150-200	150-240	150-240	150-240
No.of bottoms		2	3	4	5
Overall weight	kg	75	160	230	290
230M290atched power	hp	15-25	35-40	40-50	50-70
Linkage		Standard three point mounted

Model	Unit	1L-230	1L-330	1L-430	1L-530
Working width	m	0.6	0.9	1.2	1.5
Working depth	mm	180-260	180-260	180-260	180-260
No.of bottoms		2	3	4	5
Overall weight	kg	170	240	300	400
Matched power	hp	40-50	40-50	50-70	75-100
Linkage		Standard three point mounted

Model	Unit	1L-335	1L-435	1L-535	1L-635
Working width	m	1.05	1.4	1.75	2.1
Working depth	mm	200-300	200-300	200-300	200-300
No.of bottoms		3	4	5	6
Overall weight	kg	320	500	580	780
Matched power	hp	65-75	90-110	110-130	130-160
Linkage		Standard three point mounted
