SSQF Hydraulic Reversible Plough, Tractor Hydraulic Reversible Plough
Go back to Catalog: Share Plough
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions

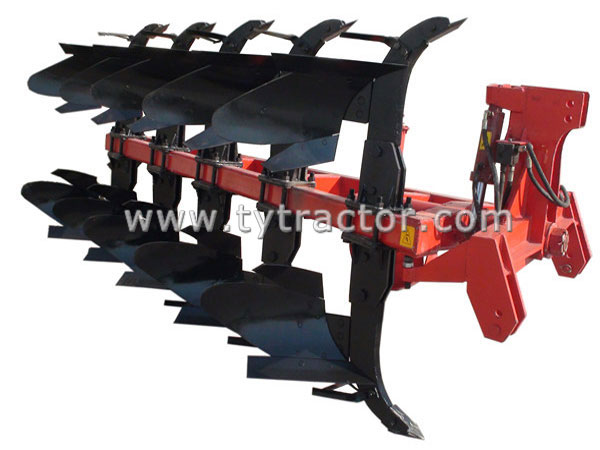

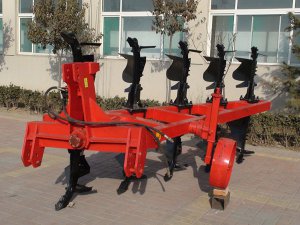

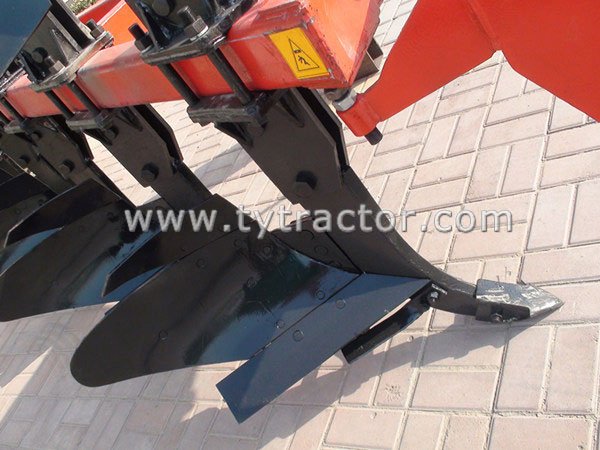

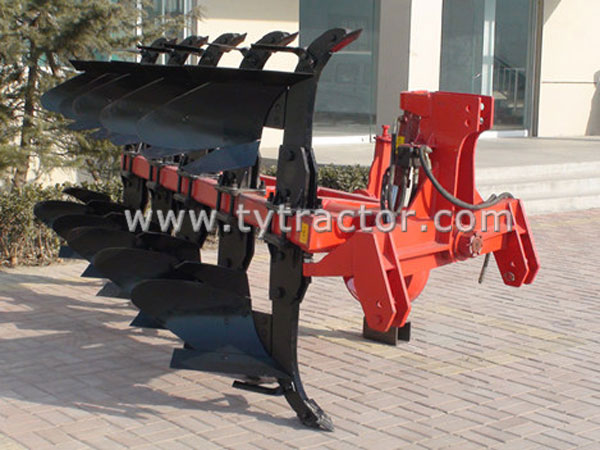

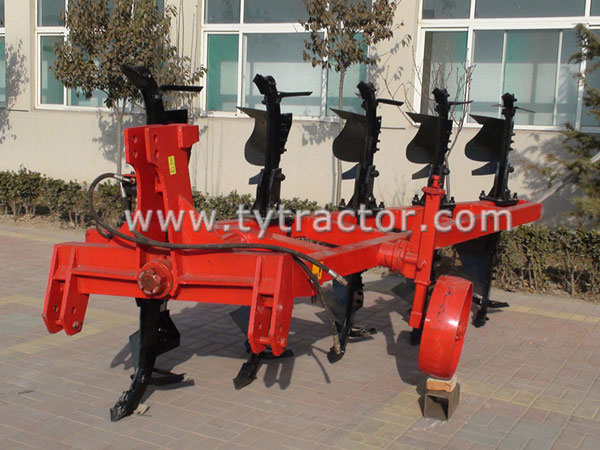

SSQF Hydraulic Reversible Plough Series
Sell SSQF series hydraulic reversible plough:
This series hydraulic reversible plow is suitable for ploughing on the cultivated dry field with the soil resistance, and also can be used in the paddy field in the North.
Features
1) The reversible plough has two mouldboard ploughs mounted back-to-back, one turning to the right, the other to the left. While one is working the land, the other is carried upside-down in the air. At the end of each row, the paired ploughs are turned over, so the other can be used. This returns along the next furrow, again working the field in a consistent direction.
2) With reasonable structure, strong ability to plow, durable, easy to use and maintenance, etc.
Technical Data- SSQF series
Sell SSQF series hydraulic reversible plough:
This series hydraulic reversible plow is suitable for ploughing on the cultivated dry field with the soil resistance, and also can be used in the paddy field in the North.
Features
1) The reversible plough has two mouldboard ploughs mounted back-to-back, one turning to the right, the other to the left. While one is working the land, the other is carried upside-down in the air. At the end of each row, the paired ploughs are turned over, so the other can be used. This returns along the next furrow, again working the field in a consistent direction.
2) With reasonable structure, strong ability to plow, durable, easy to use and maintenance, etc.
Technical Data- SSQF series
| Model | unit | SSQF-435 | SSQF-535 | SSQF-635 | SSQF-735 |
| No. of bottoms | 8 | 10 | 12 | 14 | |
| Working width | mm | 1050 | 1400 | 1750 | 2100 |
| Working depth | mm | 350~450 | 350~450 | 350~450 | 350~450 |
| Matched power | HP | 80~100 | 100~120 | 145 | 160 |
| Overall weight | kg/set | 1040 | 1250 | 1450 | 1618 |
| Linkage | standard three point mounted | ||||
