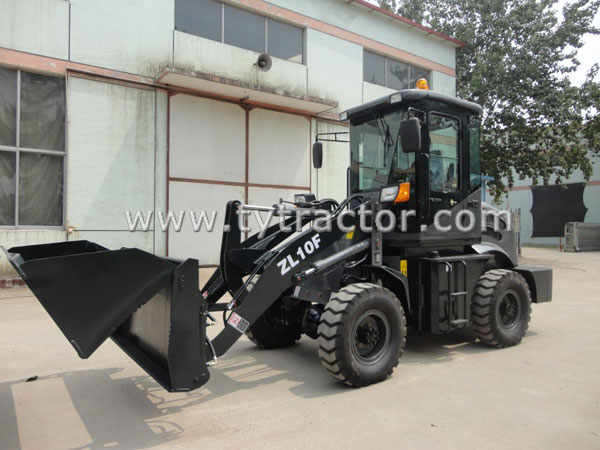

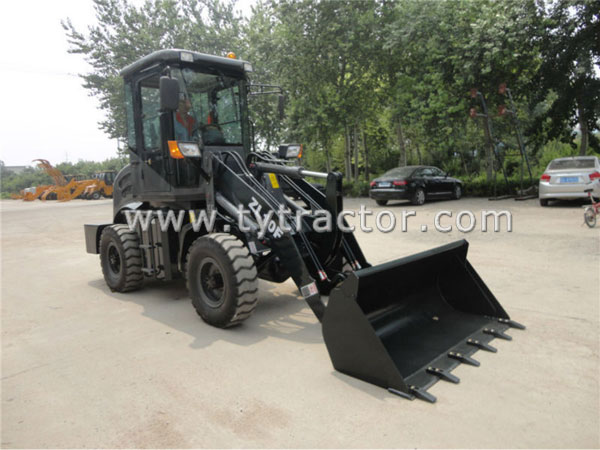

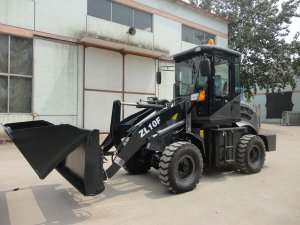

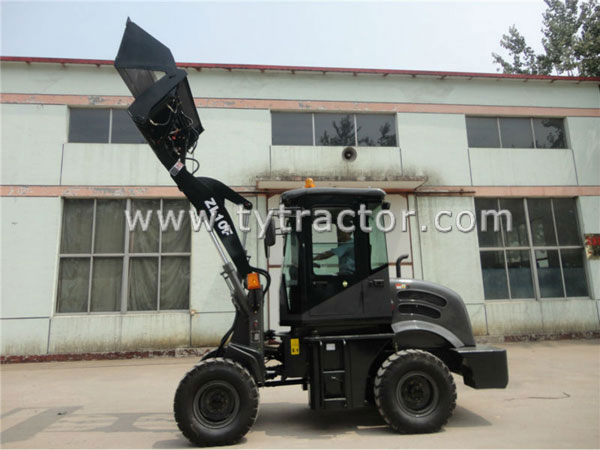

ZL10 Wheel Loader, 1 Ton wheel loader with CE
Go back to Catalog: Wheel Loader
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
ZL10 Wheel Loader Series
| HE TECHNICAL PARAMETERS OF ZL10A CE CERTIFICATE MINI WHEEL LOADER | |||
| Item | Specifications | Item | Specifications |
| Rated loading weight | 1000kg | Operating weight | 2850kg |
| Rated bucket capacity | 0.5m3 | Overall dimensions(LxWxH) | 4750x1500x2530mm |
| Bucket width | 1500mm | Engine model | CHANGCHAI 385 |
| Track base | 1215mm | Engine type |
In-line arrangement, water cooled, three-cycle diesel engine |
| Wheel base | 1985mm | Engine starting mode | Electric |
|
Min. turning radius (outside of rear wheels) |
4200mm | Rated power/Rated speed | 20KW/2200rpm |
| Min. Ground clearance | 250mm | Brake mode |
Four-wheel hydraulic spread-shoed brake |
| Dump height fully raised | 2300mm | Warranty | 12 months after received the goods |
| Reach fully raised | 850mm | Color |
According to the requirements of customers |
| Lifting time | 4S | Tyre type | 8.25-16 |
| Hydraulic cycle time | 8S | Shipping port | Qingdao port, China |
| Max. Tilt angle | 300 | Packing details |
Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ |
|
Max. Bucket breakout, lift cylinder |
22KN | Delivery time | 15 days after confirm the order |
| Driving mode | Four-wheel drive | Supply ability | 100 units per month |
