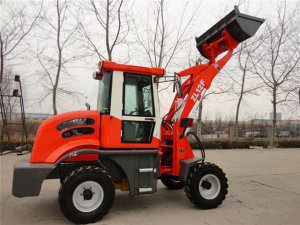

ZL12 Wheel Loader, 1200KG Wheel Loader Manufacturer
Go back to Catalog: Wheel Loader
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions
ZL12 Wheel Loader Series
SPECIFICATIONS:
OPTIONS:
SPECIFICATIONS:
| 1.0 Engine Details |
| Model: Xinchai 490 Engine(Euroiii and EPA Certificate) |
| (2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine |
| (3) Rated Power: 37KW |
| (4) Rated Speed: 2200 r/min (rpm) |
| (5) Fuel Consumption ratio in standard working condition: 230g /kw. H |
| 2.0 Transmission System |
| (1) Type: Fixed-spindle Power shift |
| (2) Shift gear control oil pressure: 1.2~1.5MPa |
| (3) Rated input speed: 2500 (rpm) |
| 3.0 Bucket |
| (1) Bucket Capacity: 0.6 m3 (2) Bucket width: 1800mm |
| (3) Bucket type: Heavy-duty bolt on teeth |
| (4) Rated Load: 1200kg |
| (5) Operating Weight: 3300kg |
| 4.0 Overall Dimensions |
| (1) Overall Length (Bucket on ground position): 4750mm |
| (2) Overall Height:2700mm |
| (a) Ground to Cab Top: 2500mm |
| (b) Dumping Height: 2600mm |
| (c) Min. Base to the Ground: 230mm |
| (3) Overall Width: 1730mm |
| 5.0 Operating Specifications |
| (1) Steering System: Articulated Frame with hydraulic power steering |
| (2) Min Turning Radius: 3900mm |
| (3) Driving System: Hydraulic converter |
| 6.0 Brake System |
| (1) Service Brake: Four Wheel Hydraulic spread-shoed brake |
| (2) Parking Brake: Hand operated |
| 7.0 Tyre: 12.00-16 |
OPTIONS:
| Pallet Forks |
|
Snow Bucket |
|
|
| Quick Hitch |
|
Hydraulic Snow Blade |
|
|
| 12-16.5 Tyre |
|
Snow Blower |
|
|
| 14-17.5 Tyre |
|
Tyre Chain |
|
|
| 31.5×15-15 Tyre |
|
Hydraulic Line(per one more) |
|
|
| Adjustable Pallet Forks |
|
4 in 1 Bucket |
|
|
| Grapple Forks/Wooden Forks |
|
Drum Folder/Barrel Clamp |
|
|
| Grapple Bucket |
|
Mixer Bucket |
|
|
| Electric Joystick |
|
Sweeper |
|
|
| E4 Lamp |
|
Floating Function |
|
|
| Auger |
|
New Wooden Forks |
|
|
| Varta Anti-freeze Battery |
|
LED Light |
|
|
| Plain bucket |
|
Air condition |
|
|
