ZL50 Wheel Loader, 5Ton Wheel Loaders Manufacturer
Go back to Catalog: Wheel Loader
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
We can supply spare parts within 15 business days or sooner. Please offer the parts number and when the machine you bought and what the brand of engine, transmission etc. If you are not sure, please contact us directly. Quality, ReliabilityCustom Farm machienry Get a Discount Price,Order now or contact if you have any questions

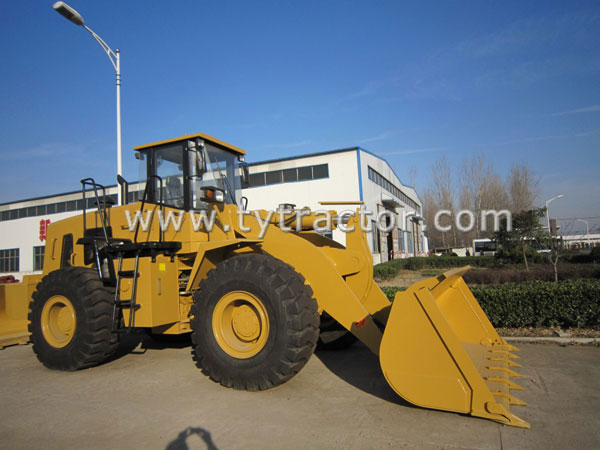

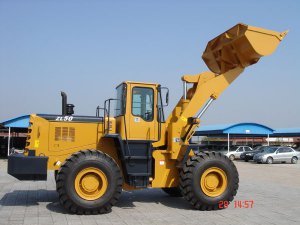

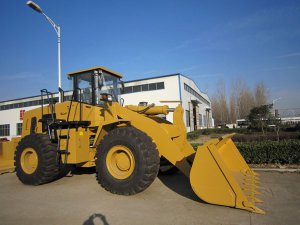

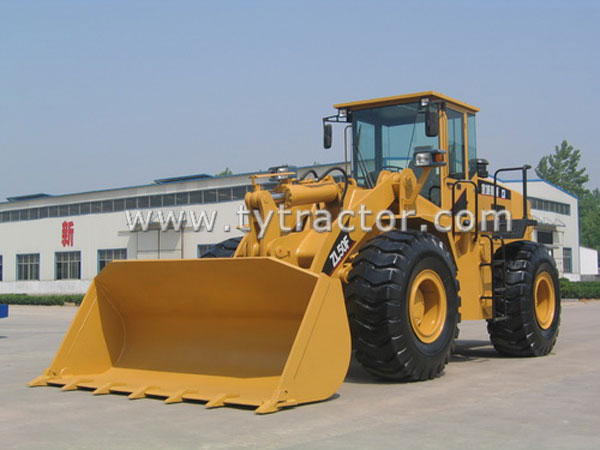

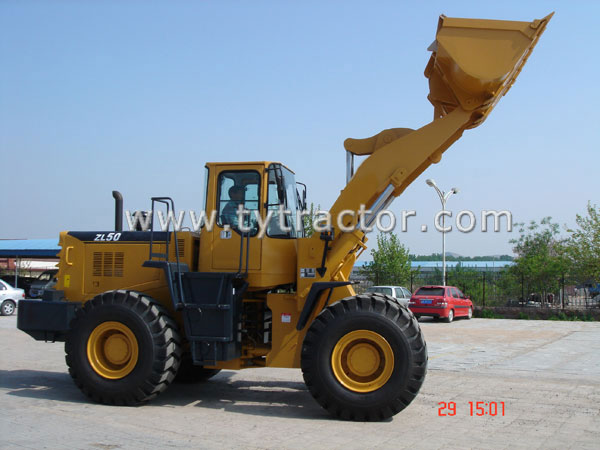

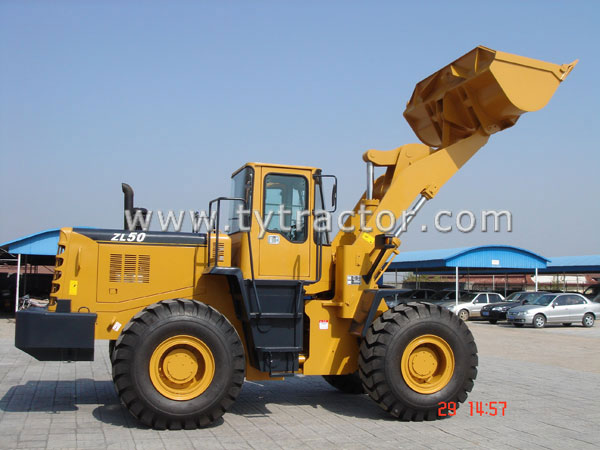

ZL50 Wheel Loader Series
1. Standard equipment
Mountain Raise 5ton wheel loader MR650B, with heavy duty style,big capacity 3.0cbm,
Weichai Styre 162kw ,high torque, low consumption engine, high-pressure 23.5-25 tires.
2.Option equipment
Heater,Air conditoner, Joystick etc. cab equipment for option!
Cummins Engine to meet different requirements!
3.Packing details:
1 set in 1 40'ft_container, unload the cab.
Main Specifications
1. Standard equipment
Mountain Raise 5ton wheel loader MR650B, with heavy duty style,big capacity 3.0cbm,
Weichai Styre 162kw ,high torque, low consumption engine, high-pressure 23.5-25 tires.
2.Option equipment
Heater,Air conditoner, Joystick etc. cab equipment for option!
Cummins Engine to meet different requirements!
3.Packing details:
1 set in 1 40'ft_container, unload the cab.
Main Specifications
|
Performance |
Rated load | 5000kg |
| Overall weight | 17100kg | |
| Rated bucket capacity | 3m3 | |
| Maximum tractive force | 152KN | |
| Maximum breakout force | ≥170KN | |
| Maximum grade ability | 30ºC | |
| Maximum dump height | 3150mm | |
| Maximum dump reach | 1250mm | |
| Overall dimension (L×W×H) | 7920×3050×3400mm | |
| Minimum turning radius | 6640mm | |
|
Engine |
Model | Weichai Steyr WD615 |
| Type | lnline water cooling dry cylinder injection | |
| No. of cylinder-bore/stroke | 6-126×130mm | |
| Rated power | 162kw--2400r/min | |
| Maximum torque | 860N.m | |
| Min fuel-consume ratio | ≤215g/kw.h | |
|
Transmission system |
Torque converter | YJ375 |
| Gearbox mode | Power shift normally engaged straight gear | |
| Gear shift | 4 forward shift 4reverse shift | |
| Maximum speed | 38km/h | |
|
Drive axles |
Main reducing spiral | bevel gear grade 1reduction |
| Decelerating mode | planetary reduction,grade 1 | |
| Wheel base (mm) | 3200mm | |
| Wheel tread | 2250mm | |
| Minimum ground clearance | 450mm | |
|
Hydraulic system |
System working pressure | 18MPa |
| Boom lifting time | 5.95±0.2s | |
| Total time | 10.95±0.5s | |
| Fuel tank capacity | 300L | |
| Function of leveling automatically | yes | |
|
Brake system |
Service brake | air over hydraulic disc brake on 4 wheels |
| Parking brake | manual parking brake |
